Vector-based Recommendations in Spring Boot: pgvector Similarity + Business Rules

1. Overview

This solution implements an explainable recommendation service that combines vector similarity (embeddings) with deterministic business rules to produce stable, production-suitable rankings. It addresses the common gap between “embedding-only” recommendations (high recall but hard to control) and “rules-only” personalization (predictable but low relevance and hard to generalize).

Pure vector similarity approaches often fail in production because they are difficult to constrain: they can surface disallowed content, violate inventory or eligibility constraints, and produce unstable ordering when similarity scores are close. They also tend to be non-explainable to stakeholders beyond “the model said so,” which complicates debugging, auditing, and governance. Pure business-rule ranking, conversely, becomes brittle as catalogs grow and user intent becomes multi-dimensional.

This implementation is production-ready in the sense that it:

• Separates eligibility filtering (hard rules) from ranking (soft scoring) and produces a structured explanation of the final ordering.
• Uses PostgreSQL + pgvector for low-latency similarity search with predictable operational characteristics and transactional data consistency.
• Implements timeouts, retries (where safe), and explicit failure behavior for the embedding provider and the database.
• Produces traceable ranking breakdowns (score components, applied rules, and tie-breakers) for debugging and auditability.

2. Architecture

Request flow and components:

• Client → Recommendation API (Spring Boot REST)
• Recommendation API → AuthN/AuthZ layer (Spring Security)
• Recommendation API → Eligibility Filter (business rules engine/module)
• Recommendation API → Embedding Client (OpenAI-compatible embedding API)
• Recommendation API → PostgreSQL (pgvector) for similarity search and metadata lookup
• Recommendation API → Ranker (score aggregation + deterministic tie-breakers)
• Recommendation API → Audit/Explain Log (structured logs; optional DB persistence)

External dependencies:

• PostgreSQL with pgvector extension enabled (vector index + transactional catalog state).
• Embedding API (OpenAI-compatible) for generating embeddings for query/user/context vectors.
• Docker Compose for local single-node deployment.

Trust boundaries:

• Untrusted: client inputs (user identifiers, query text, context signals).
• Semi-trusted: embedding provider responses (validated for shape and length; guarded by timeouts).
• Trusted: internal service components and database on the private Docker network.
• Boundary enforcement: authentication at the API; authorization at endpoint and rule scope; least-privilege DB credentials.

3. Key Design Decisions

Technology stack

• Java 17 + Spring Boot 3.x: standard enterprise runtime, predictable performance, mature ecosystem for security, configuration, and observability.
• PostgreSQL + pgvector: avoids introducing a separate vector database for the single-node deployment model. Keeps item metadata and embeddings in one transactional store, simplifying consistency and operational overhead.
• Docker Compose: aligns with single-node reproducible execution and platform packaging.

Data storage model

• Store item embeddings alongside item metadata and eligibility fields in PostgreSQL.
• Store “explainability outputs” (ranking breakdowns) in structured logs by default; optionally persist to a table for audit/compliance use-cases (configurable).
• Use immutable recommendation result identifiers to correlate requests, logs, and persisted explanations.

Synchrony vs asynchrony

• The primary recommendation request is synchronous to meet typical online serving requirements (low latency, immediate response).
• Optional asynchronous paths are supported conceptually (not required for local run): embedding precomputation for items and periodic refresh jobs. For the baseline runnable system, item embeddings are assumed to be preloaded or ingested via an admin endpoint.

Error handling and retries

• Embedding calls use strict timeouts and bounded retries with jitter only on transient failures (network timeouts, 5xx). Non-retryable failures (4xx, invalid payloads) fail fast.
• Database queries rely on connection pool timeouts and fail with explicit error mapping; no blind query retries that could amplify load.
• If embedding generation fails, the service returns a controlled error response (e.g., 503) or a configured fallback behavior (e.g., “rules-only recommendations”) depending on runtime configuration.

Idempotency strategy

• For read-only recommendation endpoints, idempotency is inherent.
• For ingestion endpoints (e.g., upserting items/embeddings), use an idempotency key or deterministic item identifiers. Upserts are executed as single-statement transactional operations keyed by item_id to prevent duplicates.

4. Data Model

Core tables (design intent):

• items

  • Purpose: canonical catalog records and business-rule eligibility fields.
  • Key columns: item_id (PK), status, category, region, is_active, inventory_state, price, created_at, updated_at.
  • Indexing: B-tree indexes on status, category, region, and composite indexes aligned to common eligibility filters (e.g., (region, is_active)).

• item_embeddings

  • Purpose: vector representation of items for similarity search.
  • Key columns: item_id (PK/FK), embedding VECTOR(d), embedding_model, embedded_at.
  • Indexing: pgvector index on embedding using the chosen operator class (typically cosine or inner-product based, depending on normalization strategy). Ensure the index matches the similarity operator used in queries.

• recommendation_explanations (optional persistence; otherwise logs-only)

  • Purpose: durable audit trail and debugging.
  • Key columns: request_id (PK), principal_id, input_factors (JSONB), applied_rules (JSONB), candidates (JSONB), final_ranking (JSONB), created_at.
  • Indexing: B-tree on created_at, optionally principal_id for support workflows.

Indexing strategy

• Eligibility filters should reduce candidate sets before vector ranking where possible (especially for large catalogs).
• Use pgvector index for approximate or exact nearest neighbor queries depending on performance needs; in a single-node baseline, start with an index-backed ANN configuration and a bounded topK candidate retrieval.
• Ensure deterministic tie-breaking by adding stable secondary ordering (e.g., business priority descending, then item_id ascending).

5. API Surface

Public (serving):

• POST /api/recommendations – Generate ranked recommendations for a user/context payload with explainability in response (ROLE_USER)
• GET /api/recommendations/{requestId} – Retrieve a previously generated explainability record if persistence is enabled (ROLE_USER, ownership enforced)

Internal/Admin (catalog + operations):

• POST /admin/items:upsert – Upsert item metadata used for eligibility filtering (ROLE_ADMIN)
• POST /admin/items/{itemId}/embedding:upsert – Upsert or recompute an item embedding (ROLE_ADMIN)
• POST /admin/reindex – Rebuild or verify pgvector indexes (ROLE_ADMIN)
• GET /actuator/health – Health status for service and downstream checks (no auth or ROLE_MONITOR, depending on deployment)
• GET /actuator/metrics – Metrics endpoint (ROLE_MONITOR)
• GET /actuator/prometheus – Prometheus scrape endpoint if enabled (ROLE_MONITOR)

6. Security Model

Authentication

• Spring Security with either:

  • Local development: HTTP Basic or static API key (recommended for Compose).
  • Production alignment: JWT bearer tokens (configured but not required for local run).

Authorization (roles)

• ROLE_USER: can request recommendations and read only their own persisted explanations (if enabled).
• ROLE_ADMIN: can manage items, embeddings, and maintenance operations.
• ROLE_MONITOR: can access operational endpoints (health/metrics) where restricted.

Paid access enforcement (if applicable)

• Enforced at the API boundary by mapping the authenticated principal to a “subscription/entitlement” claim (JWT claim or internal lookup).
• Requests lacking entitlement are rejected with 403 and are logged with an audit marker.
• No “soft gating” in the ranker; gating happens before candidate retrieval to avoid leaking catalog signals.

CSRF considerations

• For stateless APIs using bearer tokens, CSRF protection is typically disabled; endpoints are not intended for browser cookie auth.
• If enabling cookie-based auth for an admin UI, CSRF must be enabled for state-changing admin endpoints.

Data isolation guarantees

• Principal scoping is enforced when accessing persisted explanations: requestId fetch requires ownership check (principal_id == authenticated principal), unless ROLE_ADMIN.
• Catalog data is shared by design; if multi-tenant isolation is required, add tenant_id to core tables and apply row-level security or explicit tenant predicates on every query.

7. Operational Behavior

Startup behavior

• On startup, the service validates:

  • Database connectivity and pgvector extension availability.
  • Required schema migrations (via Flyway/Liquibase).
  • Embedding provider configuration (presence of base URL/model; does not block startup unless configured as “strict”).

• The service exposes readiness only after DB is reachable and migrations are complete.

Failure modes

• Embedding provider unavailable: request fails with a controlled 503 (or configured rules-only fallback).
• Database unavailable: readiness fails; serving endpoints return 503 with clear error codes.
• pgvector index missing/misaligned: startup can fail fast in strict mode, or emit an operational alert and run with degraded performance in permissive mode.

Retry and timeout behavior

• Embedding client:

  • Connect/read timeouts set explicitly.
  • Bounded retries for transient errors only; no retries on validation failures.

• Database:

  • Connection pool timeouts enforced.
  • No automatic query retries in the request path; operators should address underlying DB issues rather than amplify load.

Observability hooks (logs, metrics, traces)

• Structured logs include request_id, principal_id, rule_set_version, candidate_count, and top score components.
• Metrics include request latency, embedding latency, DB query latency, failure counts by dependency, and cache hit ratios if caching is enabled.
• Traces propagate request correlation across the controller, embedding client, and DB query spans (OpenTelemetry-compatible), enabling investigation of tail latency and dependency failures.

8. Local Execution

Prerequisites

• Docker Desktop (or Docker Engine) with Docker Compose v2
• Java 17 (for running tests locally; containerized run does not require local Java)
• An OpenAI-compatible embedding endpoint and API key (can be a local emulator or a remote provider)

Environment variables Set these in your shell or a .env file used by Docker Compose:

• EMBEDDING_BASE_URL – Base URL of the embedding API
• EMBEDDING_API_KEY – API key
• EMBEDDING_MODEL – Embedding model identifier
• DB_HOST=postgres (for container network)
• DB_PORT=5432
• DB_NAME=recs
• DB_USER=recs
• DB_PASSWORD=recs
• RECS_AUTH_MODE=basic|apikey|jwt (local default: basic)
• RECS_ADMIN_USER / RECS_ADMIN_PASS (if basic auth)
• RECS_USER_USER / RECS_USER_PASS (if basic auth)
• EXPLANATIONS_PERSISTED=true|false (default false; logs-only)

Docker Compose usage

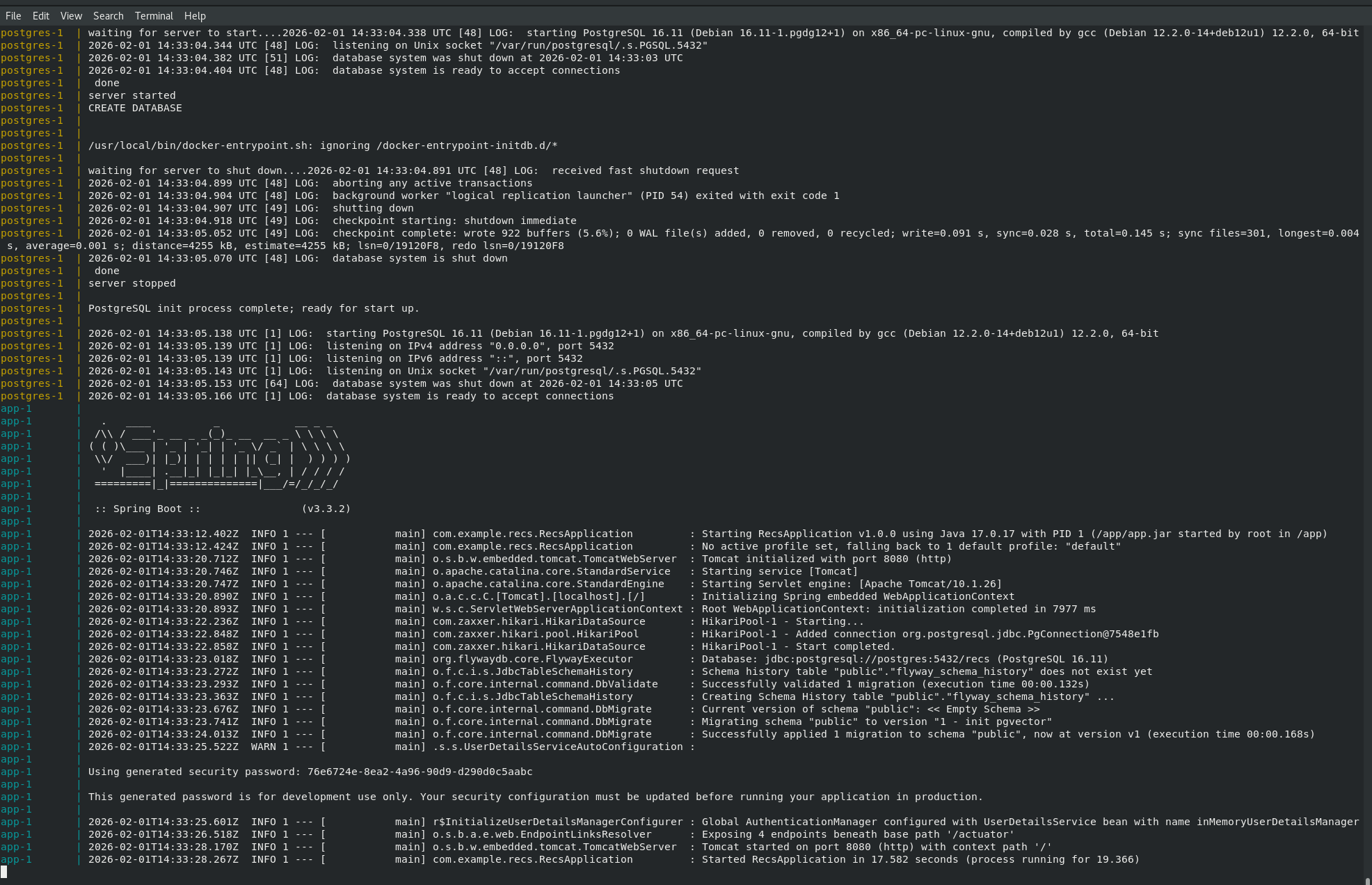

1. Start dependencies and the service:

docker compose up --build

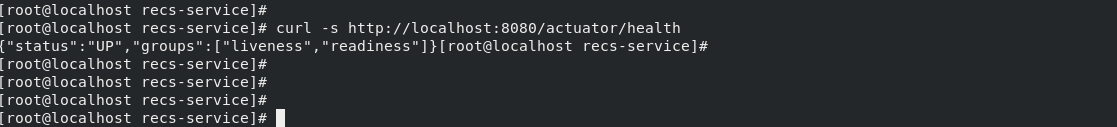

2. Verify health:

curl -s http://localhost:8080/actuator/health

Expected: status UP and database readiness indicators.

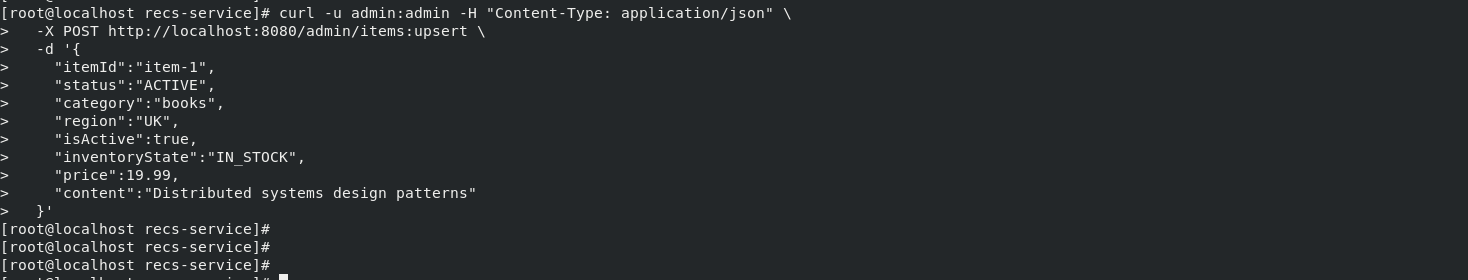

3. Seed or upsert a few items (admin-auth protected). Example (basic auth):

curl -u "$RECS_ADMIN_USER:$RECS_ADMIN_PASS" \
  -H "Content-Type: application/json" \
  -X POST http://localhost:8080/admin/items:upsert \
  -d '{
    "itemId":"item-1",
    "status":"ACTIVE",
    "category":"books",
    "region":"UK",
    "isActive":true,
    "inventoryState":"IN_STOCK",
    "price":19.99,
    "content":"Distributed systems design patterns"
  }'

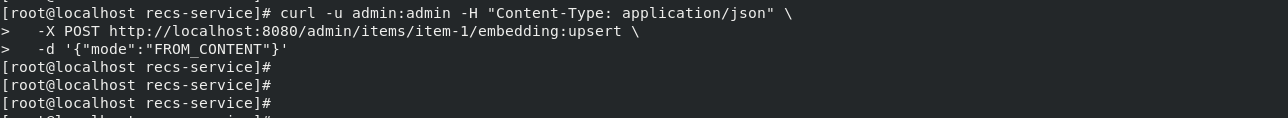

4. Upsert embeddings for items (admin-auth). If the solution supports deriving embeddings from content, call:

curl -u "$RECS_ADMIN_USER:$RECS_ADMIN_PASS" \
  -H "Content-Type: application/json" \
  -X POST http://localhost:8080/admin/items/item-1/embedding:upsert \
  -d '{"mode":"FROM_CONTENT"}'

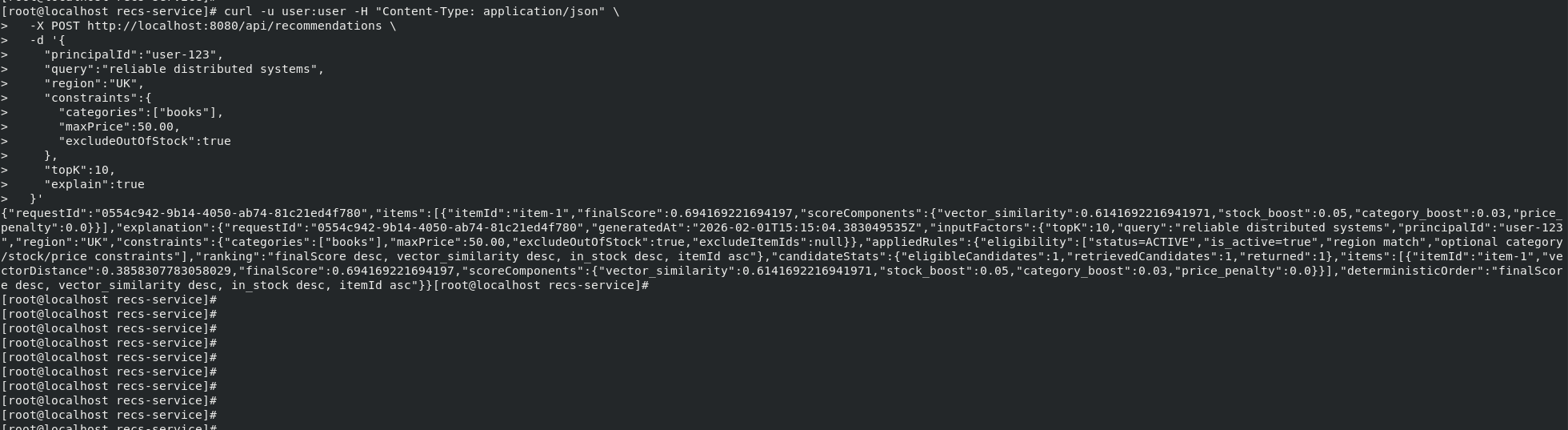

5. Request recommendations (user-auth):

curl -u "$RECS_USER_USER:$RECS_USER_PASS" \
  -H "Content-Type: application/json" \
  -X POST http://localhost:8080/api/recommendations \
  -d '{
    "principalId":"user-123",
    "query":"reliable distributed systems",
    "region":"UK",
    "constraints":{
      "categories":["books"],
      "maxPrice":50.00,
      "excludeOutOfStock":true
    },
    "topK":10,
    "explain":true
  }'

Verification steps

• Response returns:

  • A requestId
  • A ranked list of items with finalScore
  • An explanation object containing applied filters and score components

• Confirm database state (optional):

docker exec -it <postgres-container-name> psql -U recs -d recs -c \
  "select item_id, embedded_at from item_embeddings order by embedded_at desc limit 5;"

9. Evidence Pack (MANDATORY)

Included evidence artifacts (checklist):

• Service startup logs showing:

  • Successful database connection
  • Schema migrations applied
  • pgvector extension check passed

• Successful admin upsert logs for:

  • Item metadata upsert
  • Item embedding upsert/recompute

• Successful API invocation evidence:

  • Request/response logs for POST /api/recommendations including request_id
  • Response payload containing explanation fields and deterministic tie-break ordering

• Database records after execution:

  • items row present for seeded items
  • item_embeddings row present with embedded_at updated
  • (If enabled) recommendation_explanations row present for request_id

• Failure-mode demonstration:

  • Embedding provider timeout scenario producing a controlled error (or rules-only fallback) with explicit log markers
  • Authorization failure example for admin endpoints (403) with audit log entry

• Observability proof:

  • Structured log samples showing score component breakdown
  • Trace/span export evidence (if tracing enabled) for embedding call and DB similarity query spans

10. Known Limitations

• Does not implement full multi-tenant isolation by default; shared catalog is assumed. Tenant isolation requires schema changes and enforced predicates or RLS.
• Does not provide an offline evaluation harness (e.g., NDCG/CTR simulations) as part of the baseline runtime; the focus is online serving correctness and explainability.
• Embedding drift management (model upgrades, backfills) is not fully automated in the baseline; embedding refresh is supported via admin operations but not scheduled orchestration.
• Complex user modeling (session-based embeddings, long-term profiles, feature stores) is out of scope; the service accepts a query/context and ranks item candidates accordingly.

11. Extension Points

• Replace the embedding provider:

  • Swap the OpenAI-compatible client configuration to a different vendor or self-hosted embedding service; maintain vector dimensionality consistency and operator choice.

• Scale candidate generation:

  • Add pre-filter caches, category-specific indexes, or a two-stage retrieval pipeline (coarse ANN → re-rank).
  • Introduce asynchronous embedding jobs for bulk updates and scheduled refresh.

• Enhance business rules:

  • Externalize rules into a versioned ruleset (e.g., JSON/YAML or a rules engine) with controlled rollout and audit logs.
  • Add per-segment constraints (geo, compliance, inventory contracts) and expose rule versions in explanations.

• Production hardening changes:

  • Add a gateway/WAF in front of the API for rate limiting and request shaping.
  • Move secrets to a proper secret manager; rotate embedding API keys.
  • Introduce multi-node deployment with a dedicated Postgres instance and tuned pgvector index parameters; optionally split vectors into a specialized vector store if operational needs exceed Postgres constraints.

• Explainability persistence and tooling:

  • Persist explanations by default and build an internal admin viewer for debugging ranking disputes and auditing rule applications.
  • Add trace correlation IDs to explanation records for end-to-end incident investigation.
