SQL Assistant for Spring Boot: Guardrails, Read-only Enforcement, and Audit Logs

1. Overview

This solution implements a SQL Assistant for Spring Boot that converts natural-language questions into SQL with explicit schema grounding, enforces read-only execution, applies query budgeting, and records a full audit trail covering prompt inputs, generated SQL, policy decisions, execution metadata, and results summaries.

In production, “NL → SQL” approaches fail for predictable reasons:

• Ungrounded generation: the model hallucinates tables/columns or misunderstands joins and cardinality without an explicit schema contract.
• Unsafe SQL: generated statements may include writes (INSERT/UPDATE/DELETE), DDL, dangerous functions, or multi-statement payloads.
• Inadequate enforcement: many systems “ask the model to be safe” instead of enforcing safety at the database boundary.
• No traceability: teams cannot answer “who ran what, against which schema, under which policy, and what happened,” which blocks production adoption.
• Unbounded costs and load: unconstrained queries can scan large tables or execute expensive joins, harming production systems.

This implementation is production-ready because it:

• Uses a two-phase contract: schema grounding + SQL generation with strict output expectations.
• Applies deterministic guardrails: SQL parsing + allowlist policy + multi-statement rejection + parameter validation.
• Enforces read-only at the database boundary using a dedicated DB role with read-only privileges and transaction-level read-only settings.
• Adds budget controls: row limits, statement timeouts, and execution classification (cheap vs expensive) before execution.
• Persists an audit-grade execution record including input, normalized SQL fingerprint, policy outcome, runtime, row counts, and error codes.

2. Architecture

System flow:

• Client → SQL Assistant API (POST /api/sql/query)
• SQL Assistant → Schema Introspector (PostgreSQL catalogs or curated schema table)
• SQL Assistant → LLM Provider (OpenAI-compatible API) for SQL generation
• SQL Assistant → Guardrails Engine (SQL parser + policy evaluator)
• SQL Assistant → PostgreSQL (read-only connection) for query execution
• Audit events → PostgreSQL audit tables (query runs, decisions, errors)

Key components:

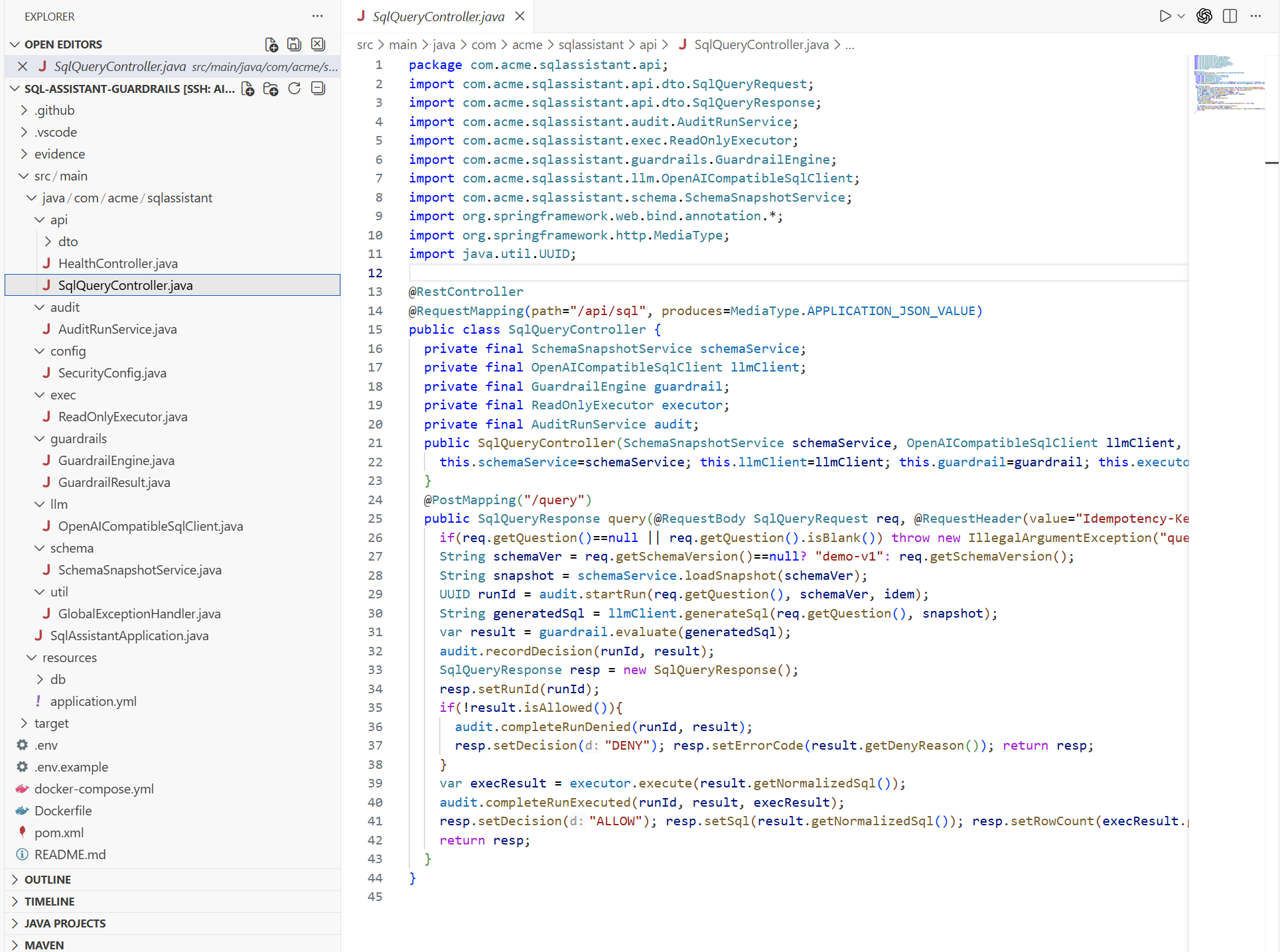

• Query Controller: request validation, auth, idempotency handling.

• Schema Service: produces a stable schema “contract” used for grounding (tables, columns, PK/FK hints, row count estimates where available).

• LLM SQL Generator: requests SQL with explicit constraints (single statement, SELECT-only, required LIMIT).

• Guardrails Engine:

  • parse SQL into AST
  • enforce single-statement SELECT-only
  • denylist risky constructs
  • enforce required predicates/limits where configured
  • normalize SQL and compute fingerprint

• Execution Engine:

  • binds parameters safely (no string concatenation)
  • sets statement timeout
  • sets transaction read-only
  • enforces max rows and result truncation for response

• Audit Logger: persists full run record and decision trace.

External dependencies:

• PostgreSQL (schema + audit + optional sample dataset)
• OpenAI-compatible API (SQL generation)
• Docker Compose (local runtime)

Trust boundaries:

• Client → Service: authenticated boundary; requests are attributed to an actor.
• Service → LLM Provider: untrusted output boundary; all generated SQL is treated as untrusted input.
• Service → PostgreSQL: privileged boundary; enforced by separate read-only role and transaction policy.

3. Key Design Decisions

Technology stack:

• Spring Boot 3.x + Java 17: stable runtime and ecosystem for secure API + DB access.
• Spring Security: role enforcement and attribution for audit logs.
• PostgreSQL: both the target query engine and the durable audit store.
• Docker Compose: reproducible local evidence runs.
• SQL parser library (e.g., JSqlParser): required to enforce deterministically at the syntax/AST level rather than regex-based checks.

Data storage model:

• Audit is stored in append-only tables with explicit foreign keys where appropriate.

• SQL is stored in multiple forms:

  • raw generated SQL
  • normalized SQL
  • a fingerprint (hash) for deduplication and trend analysis

• Result bodies are not fully persisted by default; store summaries and optional sampled rows to minimize data exposure.

Synchrony vs asynchrony:

• Queries run synchronously for interactive usage. The service enforces timeouts and row caps to keep latency bounded.
• An optional asynchronous mode can be added later (job-based execution) for expensive queries.

Error handling and retries:

• LLM calls: bounded retries for transient network/5xx errors only.
• SQL execution: no retries by default (queries may be non-idempotent at the system level due to load); surface a stable error code and require explicit client retry if desired.
• All failures produce an audit record with an error classification.

Idempotency strategy:

• Optional Idempotency-Key on the query endpoint:

  • if the same actor submits the same key, return the prior run result (or run id) without re-executing.
  • idempotency is scoped to actor + key, and optionally includes a request hash to detect mismatched reuse.

4. Data Model

Core tables and purpose:

• sql_assistant_runs

  • Purpose: primary record of each NL→SQL request and execution attempt.

  • Key columns:

    • id (uuid)
    • actor_user_id, actor_email
    • question_text
    • schema_version (or schema_snapshot_id)
    • generated_sql_raw
    • generated_sql_normalized
    • sql_fingerprint (hash)
    • policy_decision (ALLOW, DENY)
    • deny_reason_code (nullable)
    • executed (boolean)
    • duration_ms
    • row_count
    • result_sample_json (nullable, truncated)
    • error_code / error_message_truncated
    • created_at

  • Indexing:

    • (actor_user_id, created_at desc)
    • (sql_fingerprint, created_at desc)
    • (policy_decision, created_at desc)

• sql_assistant_decisions

  • Purpose: detailed policy trace for explainability (which rule fired).

  • Key columns:

    • id, run_id
    • rule_name
    • outcome (PASS, FAIL)
    • details_json
    • created_at

  • Indexing:

    • (run_id)

• schema_snapshots (optional but recommended)

  • Purpose: stable grounding input for the LLM and reproducible audits.

  • Key columns:

    • id, version, snapshot_json, created_at

  • Indexing:

    • (version) unique

Design intent:

• Every request yields a run row even if denied before execution.
• Decisions are traceable and reproducible, enabling audits and policy tuning without ambiguity.

5. API Surface

Public/internal endpoints:

• POST /api/sql/query — Generate SQL from natural language, enforce guardrails, and execute if allowed (ROLE_USER)

  • Optional: Idempotency-Key header

• GET /api/sql/runs/{id} — Fetch a prior run (question, SQL, decision, execution metadata, sampled results) (ROLE_USER, owner-only)

Admin/ops (optional):

• GET /admin/sql/runs?decision=DENY&limit=... — Search runs and denials (ROLE_ADMIN)
• GET /admin/sql/rules — List active guardrail rules and configuration (ROLE_ADMIN)

6. Security Model

Authentication:

• Spring Security authentication (local Basic auth for runnable mode; replace with platform auth in production).

Authorization (roles):

• ROLE_USER can create runs and view their own runs.
• ROLE_ADMIN can view global audit and policy outcomes.

Read-only enforcement:

• Database uses a dedicated sql_ro role with:

  • SELECT privileges on allowed schemas/tables
  • no write privileges

• Each execution uses:

  • SET TRANSACTION READ ONLY
  • statement timeout (e.g., SET LOCAL statement_timeout = '3s')
  • optional SET LOCAL idle_in_transaction_session_timeout

CSRF considerations:

• If cookie/session-based auth is used, keep CSRF enabled on POST endpoints.
• If stateless tokens are used, CSRF is not required.

Data isolation guarantees:

• Run records are scoped to the authenticated actor (owner-only read endpoints).
• Result sampling is truncated and optionally column-filtered to avoid exposing sensitive fields by default.
• LLM output is not trusted; it is treated as untrusted input and must pass deterministic enforcement.

7. Operational Behavior

Startup behavior:

• Docker Compose starts PostgreSQL and the application.
• Flyway applies migrations for audit tables and any sample dataset.
• On startup, the schema snapshot can be generated or loaded (configurable).

Failure modes:

• LLM unavailable: run is recorded with error_code=LLM_UNAVAILABLE and no execution occurs.
• Guardrails deny: run is recorded with policy_decision=DENY and deny_reason_code, no execution occurs.
• Query timeout: run is recorded with error_code=QUERY_TIMEOUT.
• SQL parse failure: run is recorded with error_code=SQL_PARSE_FAILED.
• DB errors (permissions, missing objects): run is recorded with error_code=DB_ERROR.

Retry and timeout behavior:

• LLM call retries are bounded and only for transient failures.
• SQL execution uses strict statement timeout; retries are not automatic.

Observability hooks:

• Structured logs include runId, actor, sql_fingerprint, decision, duration_ms.

• Metrics can be added for:

  • denials by reason
  • execution latency distributions
  • timeouts and DB errors

• Tracing (optional) can wrap:

  • schema snapshot fetch
  • LLM generation
  • guardrail evaluation
  • DB execution

8. Local Execution

Prerequisites:

• Docker + Docker Compose v2

Environment variables:

• LLM_BASE_URL — OpenAI-compatible base URL
• LLM_API_KEY — provider key
• LLM_MODEL — model name
• SQL_STATEMENT_TIMEOUT_MS — execution timeout
• SQL_MAX_ROWS — max rows returned (hard cap)
• Local auth credentials (for runnable mode)

Run:

docker compose up -d --build

Health:

curl http://localhost:8080/health

Generate and execute a query:

curl -u user:password -X POST http://localhost:8080/api/sql/query \
  -H 'Content-Type: application/json' \
  -d '{"question":"Top 10 customers by total spend last month"}'

Fetch run details:

RUN_ID="<uuid>"
curl -u user:password http://localhost:8080/api/sql/runs/${RUN_ID}

Verification steps:

• Confirm denied writes are blocked:

curl -u user:password -X POST http://localhost:8080/api/sql/query \
  -H 'Content-Type: application/json' \
  -d '{"question":"Delete all orders older than 2020"}'

• Confirm audit records exist in PostgreSQL:

docker exec -it <postgres-container> psql -U <user> -d <db> -c "select policy_decision, deny_reason_code, created_at from sql_assistant_runs order by created_at desc limit 10;"

9. Evidence Pack (MANDATORY)

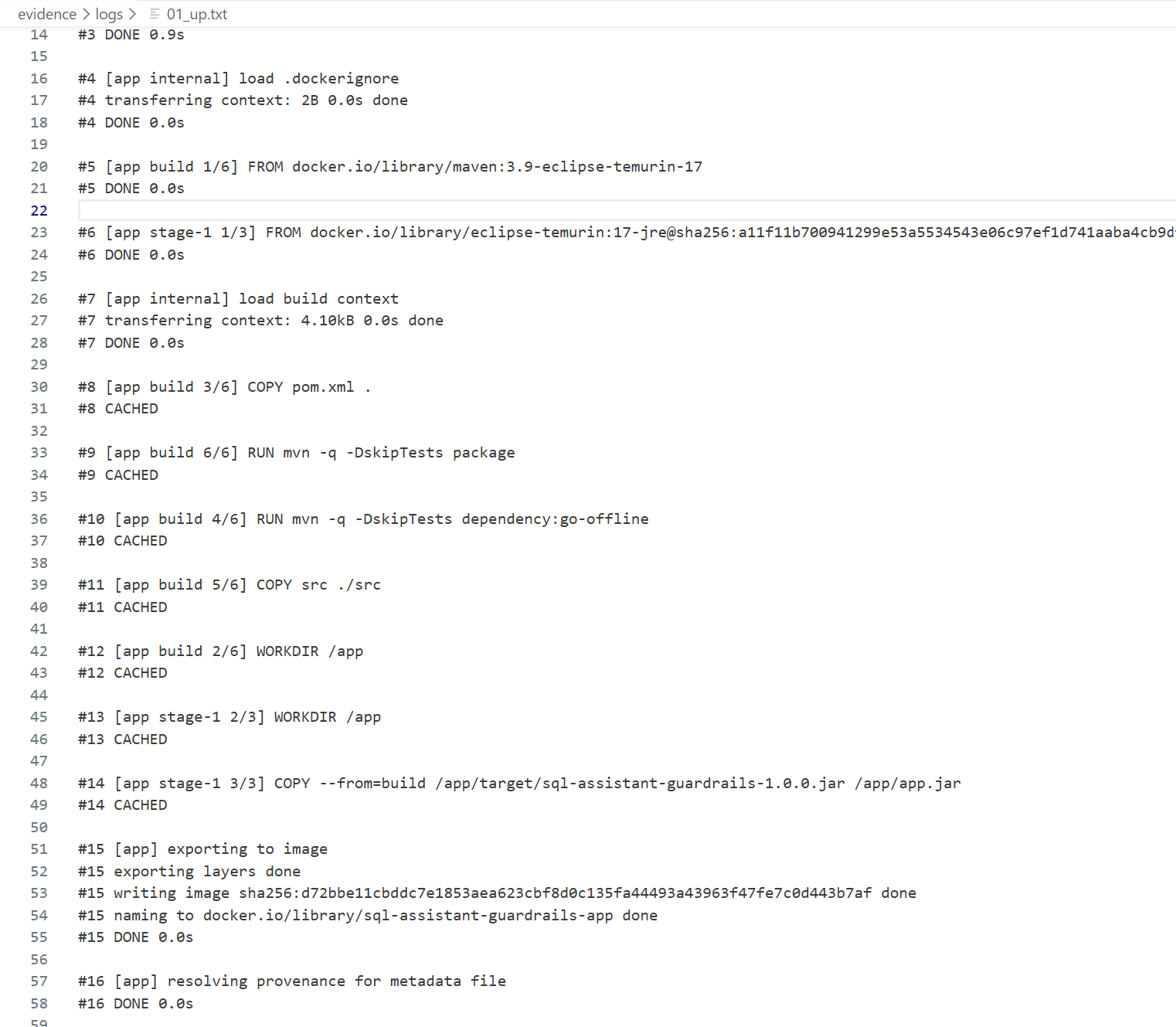

• [ ] Service startup logs showing Flyway migrations applied and readiness

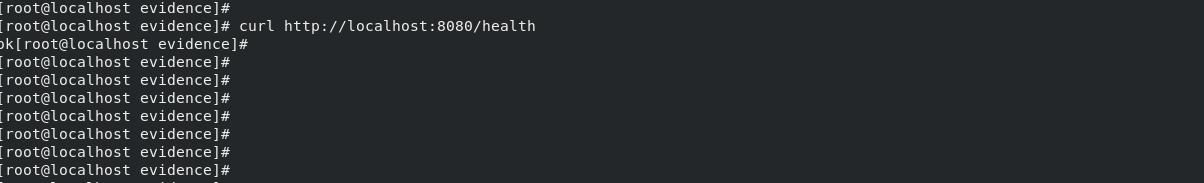

• [ ] Health endpoint response

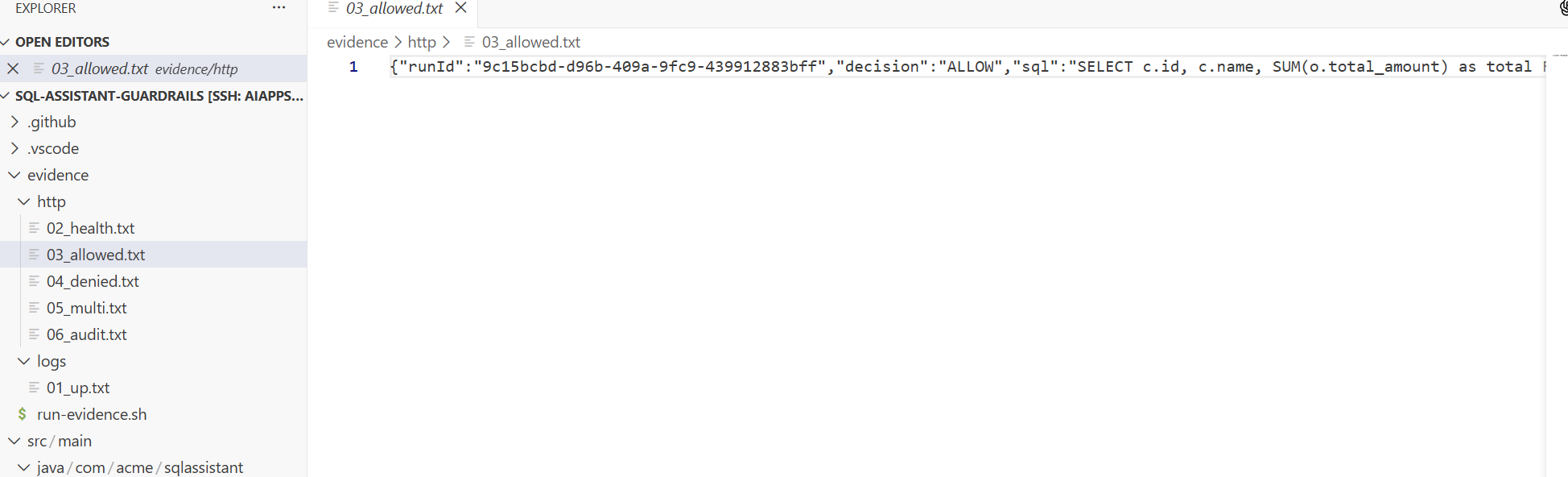

• [ ] Successful query run:

  • request/response logs for POST /api/sql/query
  • returned runId
  • policy_decision=ALLOW
  • row_count and duration_ms populated

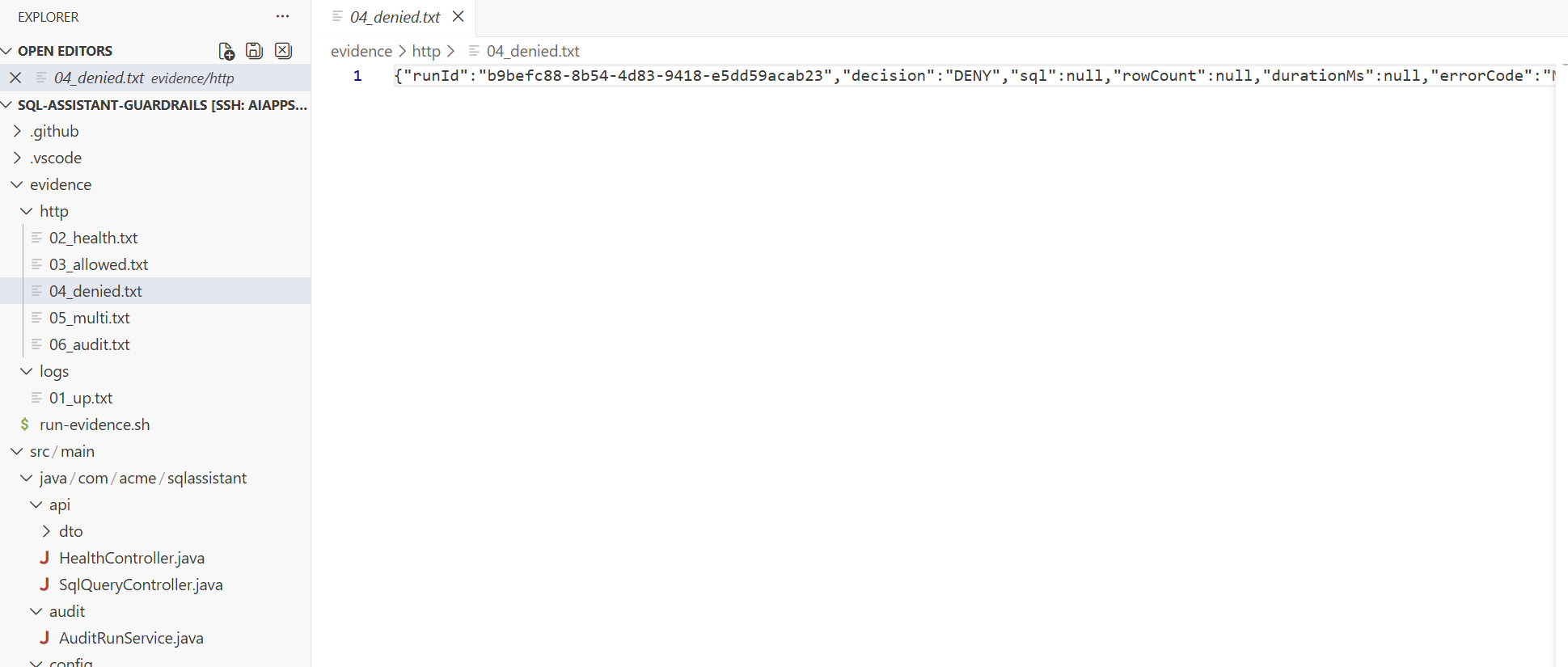

• [ ] Guardrail denial run:

  • request/response logs for a write-intent question
  • policy_decision=DENY with deny_reason_code

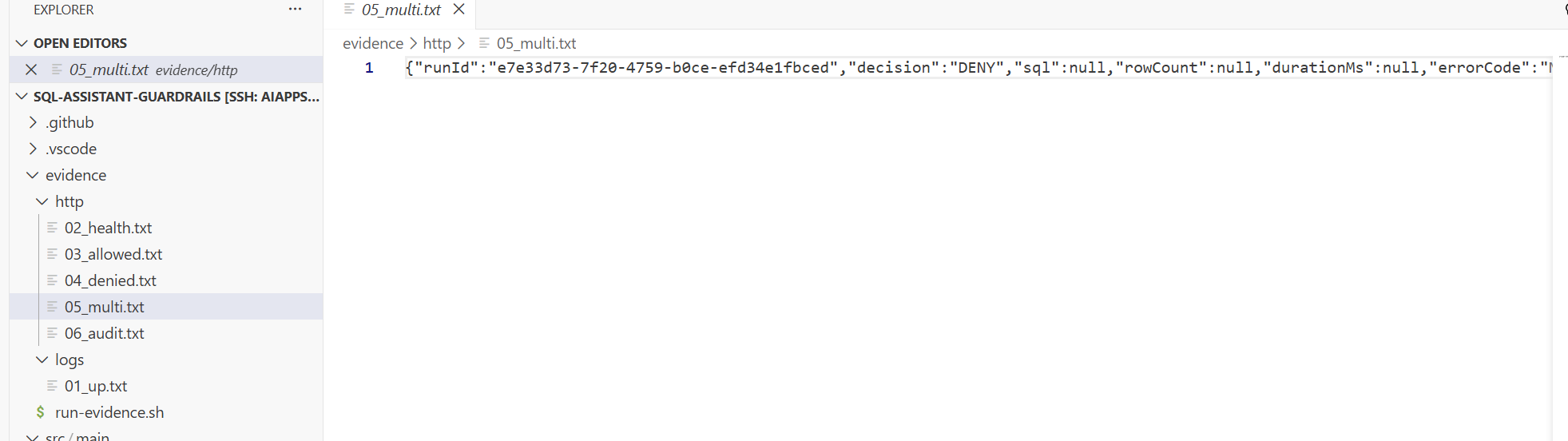

• [ ] SQL parsing enforcement evidence:

  • request that induces multi-statement output
  • denial with deny_reason_code=MULTI_STATEMENT

• [ ] Read-only DB enforcement evidence:

  • attempt to execute a write statement (even if bypass attempted) fails at DB permission boundary
  • error recorded with stable error_code=DB_READONLY_VIOLATION (or equivalent)

• [ ] Query budgeting evidence:

  • a deliberately expensive query triggers statement timeout or is denied by policy
  • recorded error_code=QUERY_TIMEOUT or deny_reason_code=EXPENSIVE_QUERY

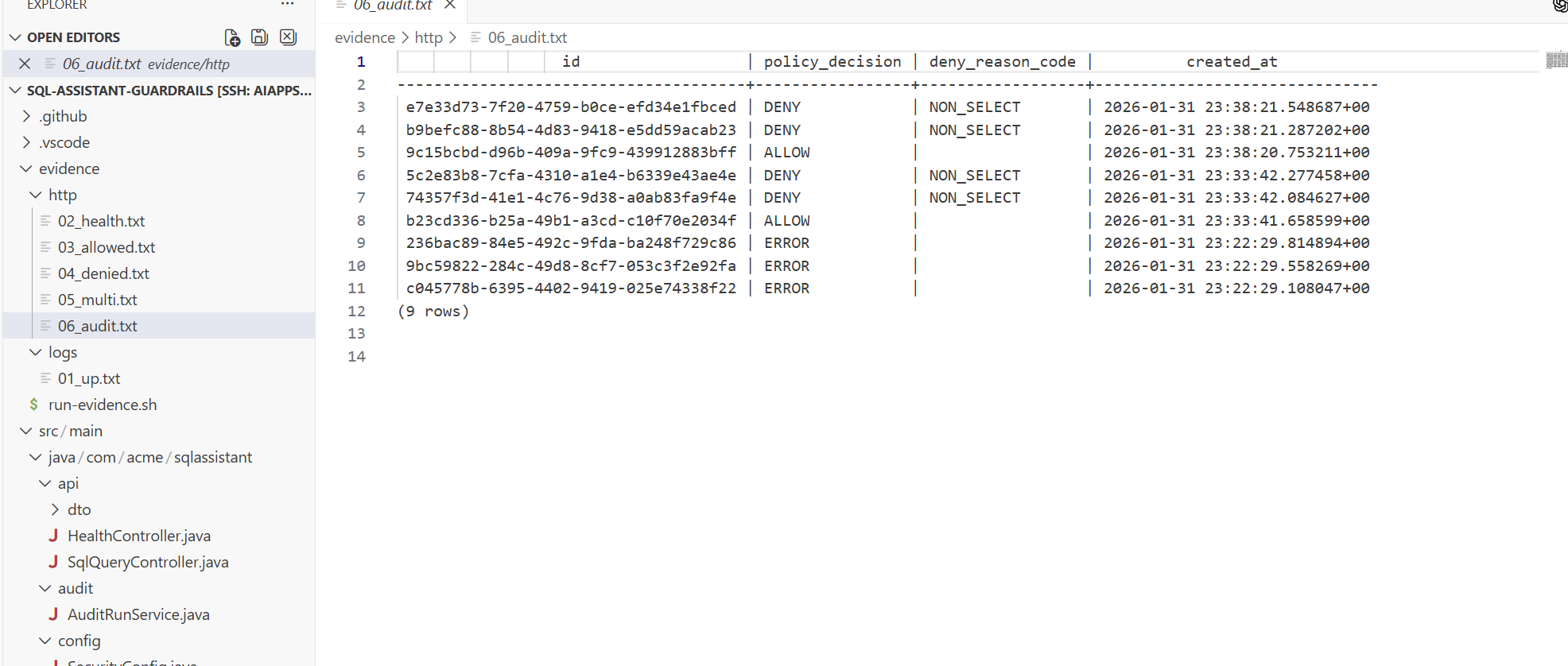

• [ ] Database records after execution:

  • sql_assistant_runs row for each run
  • sql_assistant_decisions rows showing policy trace

• [ ] Idempotency evidence (if enabled):

  • same Idempotency-Key returns same runId without re-executing

10. Known Limitations

• Does not guarantee semantic correctness of generated SQL; correctness is bounded by schema grounding and validation rules.
• Does not implement full data classification or column-level masking by default; result sampling must be configured for sensitive datasets.
• Single-node deployment model; does not include distributed rate limiting or queue-based execution for heavy workloads.
• Advanced query planning safeguards (cost-based planner checks, EXPLAIN gating) are optional extensions and not mandatory in the baseline.

11. Extension Points

• Add EXPLAIN-based gating:

  • run EXPLAIN (FORMAT JSON) and deny if estimated cost/rows exceed policy thresholds.

• Introduce column-level policies:

  • deny or mask sensitive columns by schema metadata rules.

• Add asynchronous execution:

  • queue runs and allow polling for results for long queries.

• Add tenant isolation:

  • per-tenant schema snapshots, policies, and budgets.

• Integrate OpenTelemetry:

  • traces for LLM generation, guardrail evaluation, and DB execution.

• Add evaluation harness:

  • curated NL→SQL test suite with pass/fail and regression tracking for policy tuning.
