LLM Gateway for Spring Boot: Multi-tenant API Keys, Quotas, and Cost Controls

Problem Statement

Teams want to ship LLM features quickly. Operations need control:

keys must be scoped and rotated
usage must be isolated by tenant and project
spend must be predictable with hard caps
abuse must be blocked (prompt injection / jailbreak attempts / large payloads)
auditability must exist (for incident response + billing + compliance)

Direct-to-provider SDK usage makes this messy and inconsistent. The gateway centralizes controls.

This solution delivers a Spring Boot LLM Gateway that sits between clients and an OpenAI-compatible provider.

Requirements

Runtime

Java 17 + Spring Boot 3.x
PostgreSQL (policy + audit + usage aggregation)
Redis (optional; recommended for high-QPS counters + caching)
Docker Compose for local runnable stack

Supported Provider

OpenAI-compatible API (configurable base URL + API key)

Architecture

High-Level Flow

Client → Gateway (AuthN/AuthZ) → Policy Engine → Quota/Rate Limit → (Cache?) → Provider → Response Filter → Audit → Client

Core Components

Tenant & Key Management
- tenant table (id, name, status)
- api_key table (hashed key, tenant_id, scopes, created_at, last_used_at, rotated_at)
- key rotation workflow (new key active, old key expires after grace period)
Policy Engine
- input limits: max prompt bytes, max tokens, allowed models
- output clamp: max completion tokens
- deny rules (optional): basic patterns, disallowed content flags, model allowlist
Quota & Cost Controls
- rate limits: requests/sec, concurrent in-flight
- budgets: daily/monthly spend caps per tenant/project
- token budgets: daily/monthly token caps
- enforcement modes:
  - HARD: reject once limit reached
  - SOFT: degrade (fallback model, lower max tokens)
  - OBSERVE: record but do not block (for rollout)
Caching (Optional)
- safe caching only for:
  - deterministic temperature=0 calls
  - explicitly cacheable routes
- key includes tenant_id + model + canonicalized prompt + relevant params
- TTL by route/policy
- cache hit/miss recorded
Audit & Evidence Store
- per-request record: tenant_id, key_id, model, tokens_in/out, latency_ms, policy_decision, outcome
- redactable prompt/response storage (policy-driven)
- trace_id for correlation

Data Model (Recommended)

Tables (minimum)

tenants

id (uuid)
name
status (ACTIVE/SUSPENDED)
created_at

api_keys

id
tenant_id
key_hash (never store raw key)
scopes (json)
status
created_at
last_used_at

policies

tenant_id
allowed_models (json)
max_prompt_bytes
max_input_tokens
max_output_tokens
rate_limit_rps
max_inflight
daily_budget_usd
monthly_budget_usd
daily_token_cap
monthly_token_cap
enforcement_mode (HARD/SOFT/OBSERVE)
redact_mode (NONE/BASIC/STRICT)

usage_rollup_daily

tenant_id
date
requests
tokens_in
tokens_out
cost_usd_est
blocked_requests

audit_log

request_id
tenant_id
key_id
model
request_ts
latency_ms
tokens_in/out
cost_usd_est
decision (ALLOW/BLOCK/DEGRADE)
reason_code
trace_id
prompt_redacted (optional)
response_redacted (optional)

Request Pipeline

1) Authentication

accept Authorization: Bearer <tenant_api_key>
lookup by hash (constant-time compare)
resolve tenant + scopes
reject if tenant/key is suspended

2) Input Normalization

canonicalize request:
- model
- temperature/top_p
- messages/prompt
- max_tokens (requested)
compute:
- prompt_bytes
- estimated tokens_in (approx ok; final tokens from provider response)

3) Policy Decision

verify allowed model
clamp max_tokens to policy max_output_tokens
enforce max_prompt_bytes
optional: enforce max_input_tokens (approx or via tokenizer lib)

Decision outcomes:

ALLOW
DEGRADE (rewrite request: cheaper model, lower max_tokens, stricter params)
BLOCK (reject with reason code)

4) Quota Enforcement

Rate limit

sliding window / token bucket (Redis recommended)
per-tenant and optionally per-key
enforce max in-flight with semaphore counter

Budget

compute estimated cost for the request using configured price table:
- input_tokens * price_in + output_tokens * price_out
check daily/monthly rollups
if limit reached:
- HARD: reject
- SOFT: degrade (cheaper model + max_tokens down)
- OBSERVE: allow, but flag in audit

5) Cache (Optional)

only if policy allows caching
only if temperature=0 (or explicit allow)
record cache hit in audit

6) Provider Call

bounded timeout + retry only on safe transient failures
propagate trace_id
parse provider usage to get actual tokens/cost

7) Response Filtering

ensure no provider metadata leaks secrets
optionally redact sensitive fields
return to client

8) Persist Audit + Update Usage Rollups

write audit_log
update usage_rollup_daily (transaction or async with idempotency)

Failure Modes & Safeguards

Failure Mode: Provider Outage / 5xx

Mitigation

short bounded retries (max 1–2) for transient errors
circuit breaker to shed load
fallback strategy (optional):
- alternative provider endpoint
- lower-capability model
- cached responses if allowed

Failure Mode: Redis Down (if used)

Mitigation

policy setting:
- HARD FAIL: block requests (strict)
- SOFT FAIL: allow but log “quota_unavailable” (risky)
recommended: degrade throughput if quota store unavailable

Failure Mode: Budget Calculation Mismatch

Mitigation

always store provider-reported tokens in audit when available
rollups based on actual usage
price table versioning

Failure Mode: Key Leakage

Mitigation

keys are hashed at rest
rotate keys quickly + revoke old key
per-key rate limits and anomaly alerting (optional)

Security & Compliance

Prompt/Response Storage

Storage modes:

NONE: do not store prompts/responses, only metadata
BASIC: store truncated + redacted
STRICT: store hashes only, plus small safe excerpts

Controls

never log Authorization header
redact secrets patterns (API keys, JWTs, emails) before persistence
configurable retention (e.g., audit logs 7–30 days, rollups 90+ days)

Cost & Scaling Notes

Scaling Strategy

stateless gateway instances behind load balancer
Redis for fast counters + caching
Postgres for durable audit + rollups
async audit write is possible if you include idempotency per request_id

Hot Paths

auth lookup (cache key_id in Redis)
quota counters (Redis)
audit writes (batch insert or async worker if needed)

Cost Controls Best Practices

per-tenant monthly cap + per-key RPS cap
max output tokens clamp prevents “runaway responses”
degrade mode reduces bill shock during traffic spikes

Verification Checklist (Evidence to Publish)

Publish these as evidence artifacts for buyers:

Quota block
- show tenant hitting daily budget
- gateway returns 429/402-like error with reason code
Degrade mode
- show request rewritten to cheaper model + max_tokens reduced
Audit record

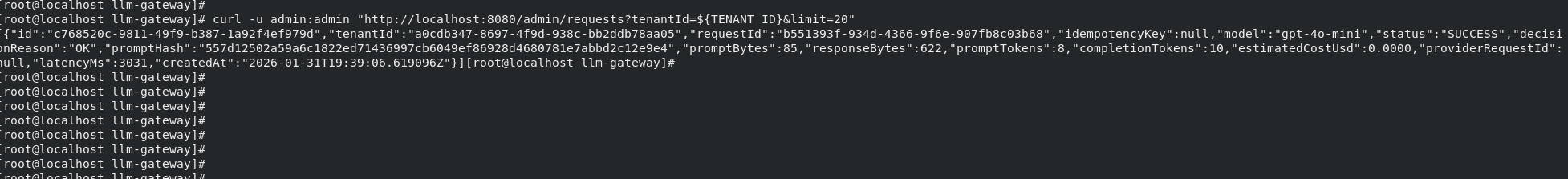

- screenshot/log of audit_log entry with tokens, cost estimate, decision, trace_id
Rate limit
- load test script showing 429 after threshold
Cache hit
- demonstrate repeated request served from cache + audit marks cache_hit=true

Run Instructions

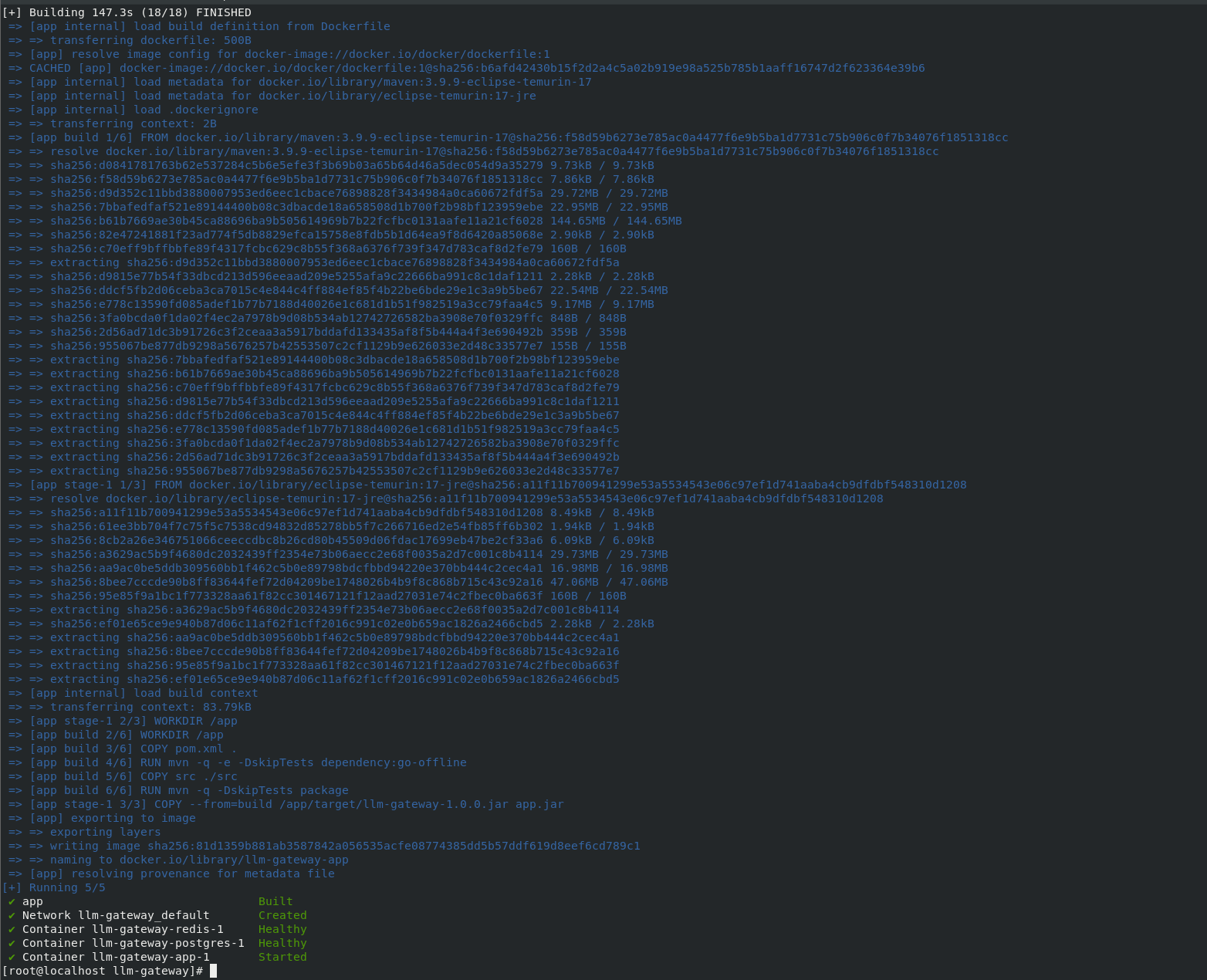

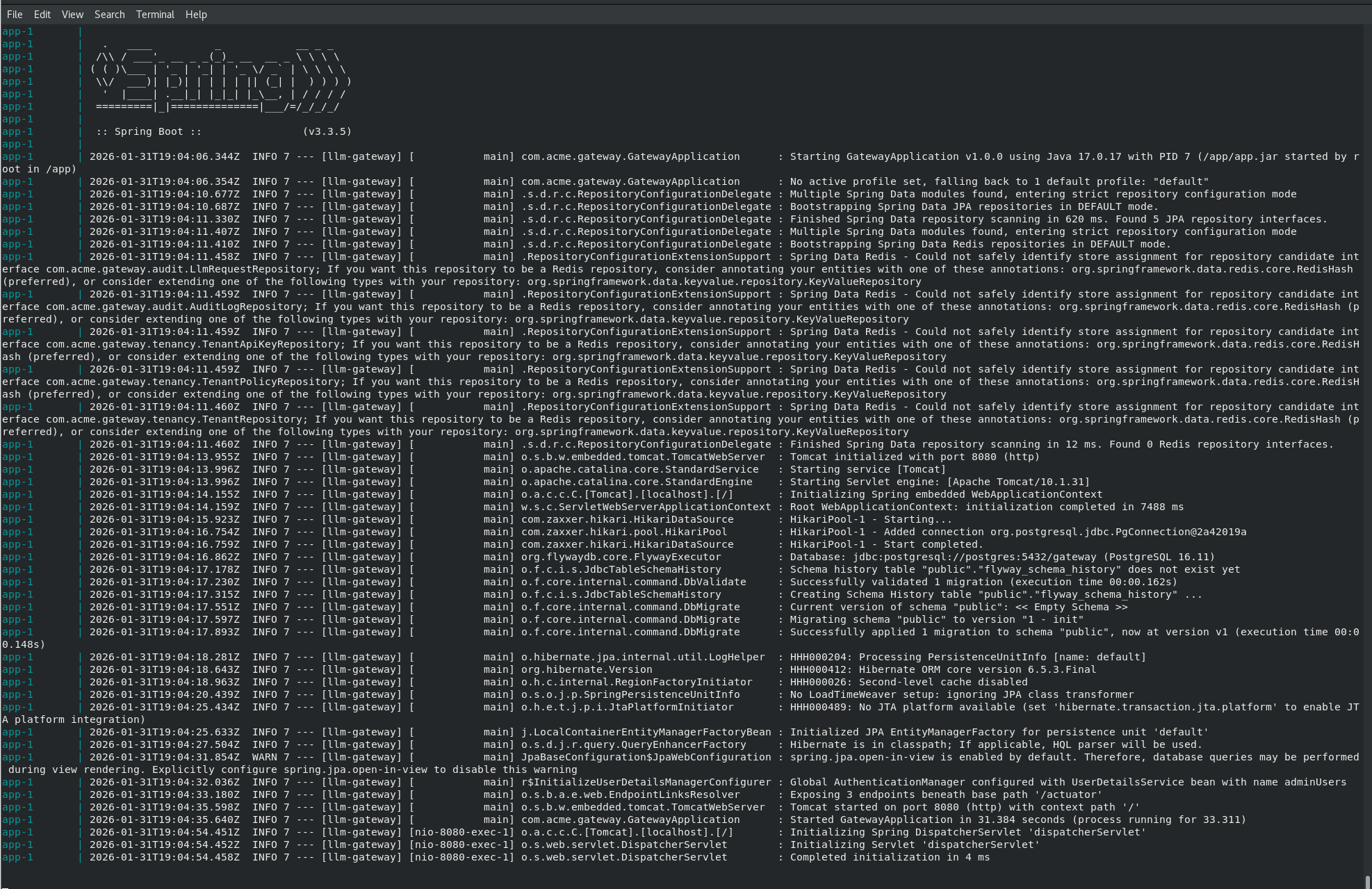

docker compose up -d

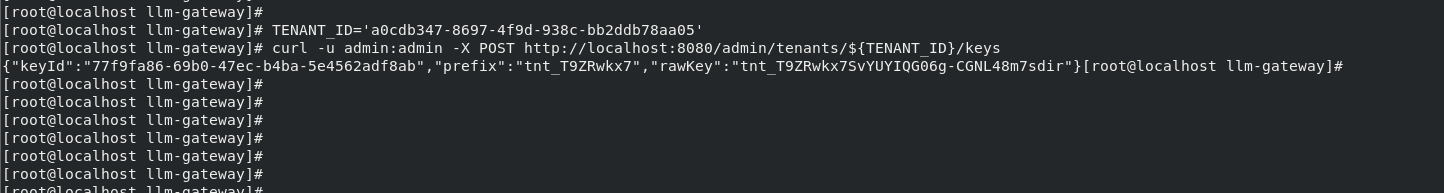

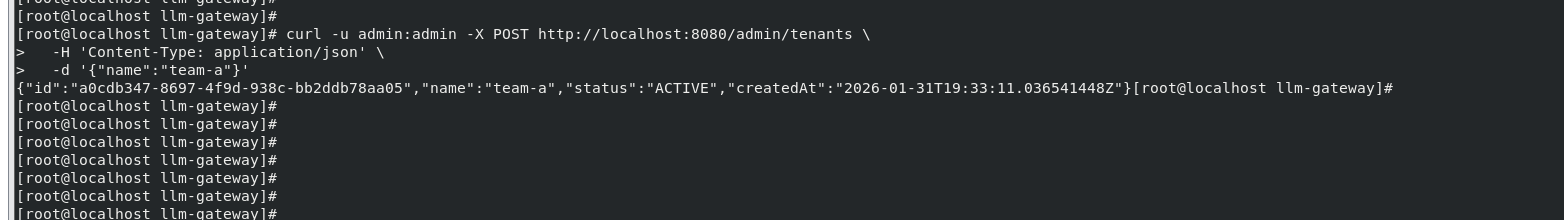

create tenant + API key (bootstrap script)

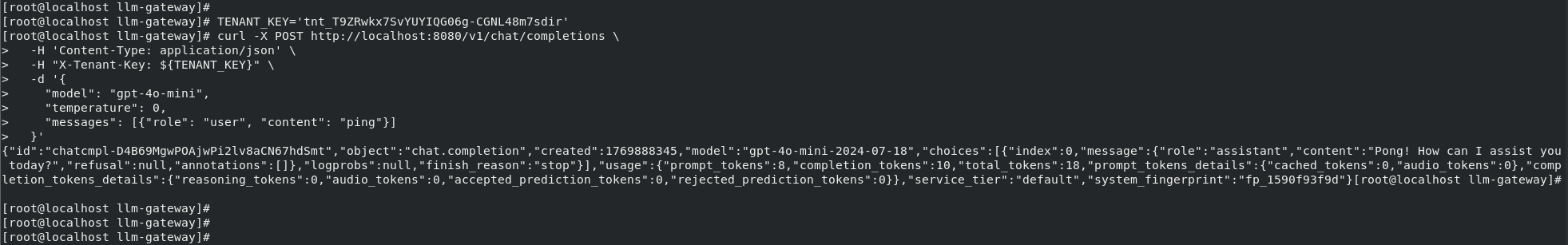

call gateway endpoint with Bearer key
observe:
- audit_log updates

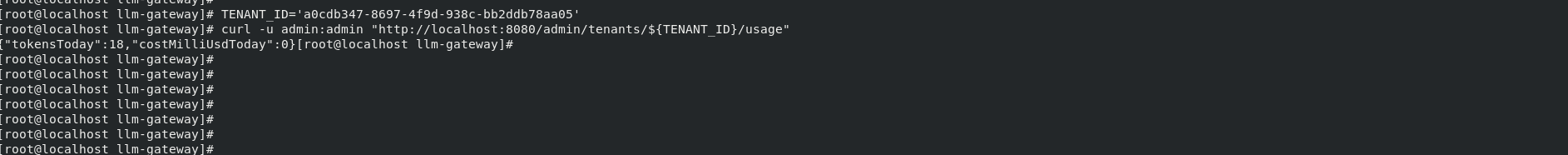

- usage_rollup_daily increments
test enforcement:

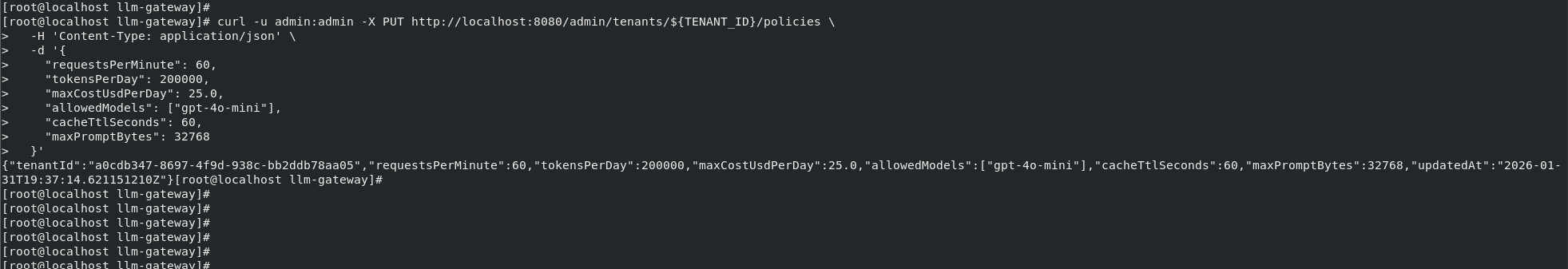

- set low daily_budget_usd
- run request loop to trigger block/degrade

Configuration Reference

Provider:
- LLM_BASE_URL
- LLM_API_KEY
Gateway:
- GATEWAY_PORT
- AUTH_HEADER=Authorization
Policy defaults:
- DEFAULT_ALLOWED_MODELS
- DEFAULT_MAX_PROMPT_BYTES
- DEFAULT_MAX_OUTPUT_TOKENS
- DEFAULT_RATE_LIMIT_RPS
- DEFAULT_MONTHLY_BUDGET_USD
- DEFAULT_ENFORCEMENT_MODE (HARD/SOFT/OBSERVE)
Redis:
- REDIS_URL (optional but recommended)
Postgres:
- SPRING_DATASOURCE_URL
- SPRING_DATASOURCE_USERNAME
- SPRING_DATASOURCE_PASSWORD

Changelog Guidance

Record changes that affect:

enforcement behavior (HARD/SOFT/OBSERVE)
pricing tables / cost estimation
schema changes (audit and rollups)
caching behavior
security/redaction modes
