Agentic Workflows in Spring Boot: Tool Calling, Idempotency, and Durable Runs

1. Overview

This solution implements a runnable “agentic workflow” execution service in Spring Boot that can orchestrate LLM tool-calling while guaranteeing production-grade properties: durable run state, bounded retries with backoff, idempotency keys to prevent duplicate side effects, and human-in-the-loop checkpoints for sensitive actions.

The problem it solves is straightforward: once an LLM is allowed to call tools (HTTP, database writes, internal service calls), naive implementations become operationally unsafe. Typical failure patterns include:

• Duplicate tool execution when clients retry requests or when the LLM repeats calls after partial failures.
• Lost or inconsistent workflow state when the process restarts mid-run.
• Unbounded loops or runaway costs when the model keeps calling tools without constraints.
• Non-replayable incidents because intermediate decisions, tool inputs/outputs, and retry history are not persisted.
• “Human approval” steps implemented as ad-hoc blocking logic that breaks under restarts and timeouts.

Existing approaches often fail in production because they treat tool-calling as a synchronous chat completion loop with in-memory state. When the node restarts, state is lost; when a request times out, clients retry and side effects duplicate; when a tool fails transiently, there is no consistent retry semantics or visibility into what happened.

This implementation is production-ready because it treats workflows as durable runs:

• Every run is persisted with step-level state transitions (queued → running → waiting_for_approval → completed/failed).
• Tool calls are recorded as first-class events with idempotency protection at the tool boundary.
• Retries are deterministic and observable, with attempt counters, next-at timestamps, and structured error capture.
• Human-in-the-loop is modeled as a durable wait state, not a process-level block.
• End-to-end tracing (OpenTelemetry) correlates API requests, run execution, tool calls, and retries.

2. Architecture

Request flow and dependencies:

• Client → Spring Boot REST API
• REST API → PostgreSQL (durable run + step state, outbox events, idempotency records)
• REST API → LLM Provider (OpenAI-compatible API) for “next action” planning and tool selection
• Workflow Engine (in-process) → Tool Registry (internal interface) → External Systems (HTTP tools, DB tools, mock tools)
• Scheduler (Spring Scheduling) → Run Dispatcher → Workflow Engine (process pending work, retries, timeouts)
• Core Service → OpenTelemetry SDK → OTLP Collector (optional) → Tracing backend (e.g., Jaeger/Tempo/Langfuse-compatible collector)

Key components:

• Run API: creates runs, queries run status, lists history, handles approval.
• Workflow Engine: executes deterministic state machine over persisted steps.
• Planner Adapter: wraps LLM calls and normalizes “tool call” directives and constraints.
• Tool Registry: maps tool names to strongly-typed implementations; enforces idempotency and timeouts.
• Run Dispatcher: picks eligible runs/steps from DB (using leases) and executes them.
• Idempotency Service: stores and checks idempotency keys per tool execution boundary.
• Outbox/Event Log: optional append-only event records for audits and replay.
• Observability: structured logs + OTel traces (request/run/step/tool spans).

Trust boundaries:

• Inbound boundary: client input to REST API (authz + validation).
• LLM boundary: planner output is untrusted and must be constrained (allowed tools, max steps, schema validation).
• Tool boundary: all side effects must be guarded (idempotency + authorization + allowlists).
• Data boundary: run history contains sensitive data; access controlled by roles and tenant scoping.

3. Key Design Decisions

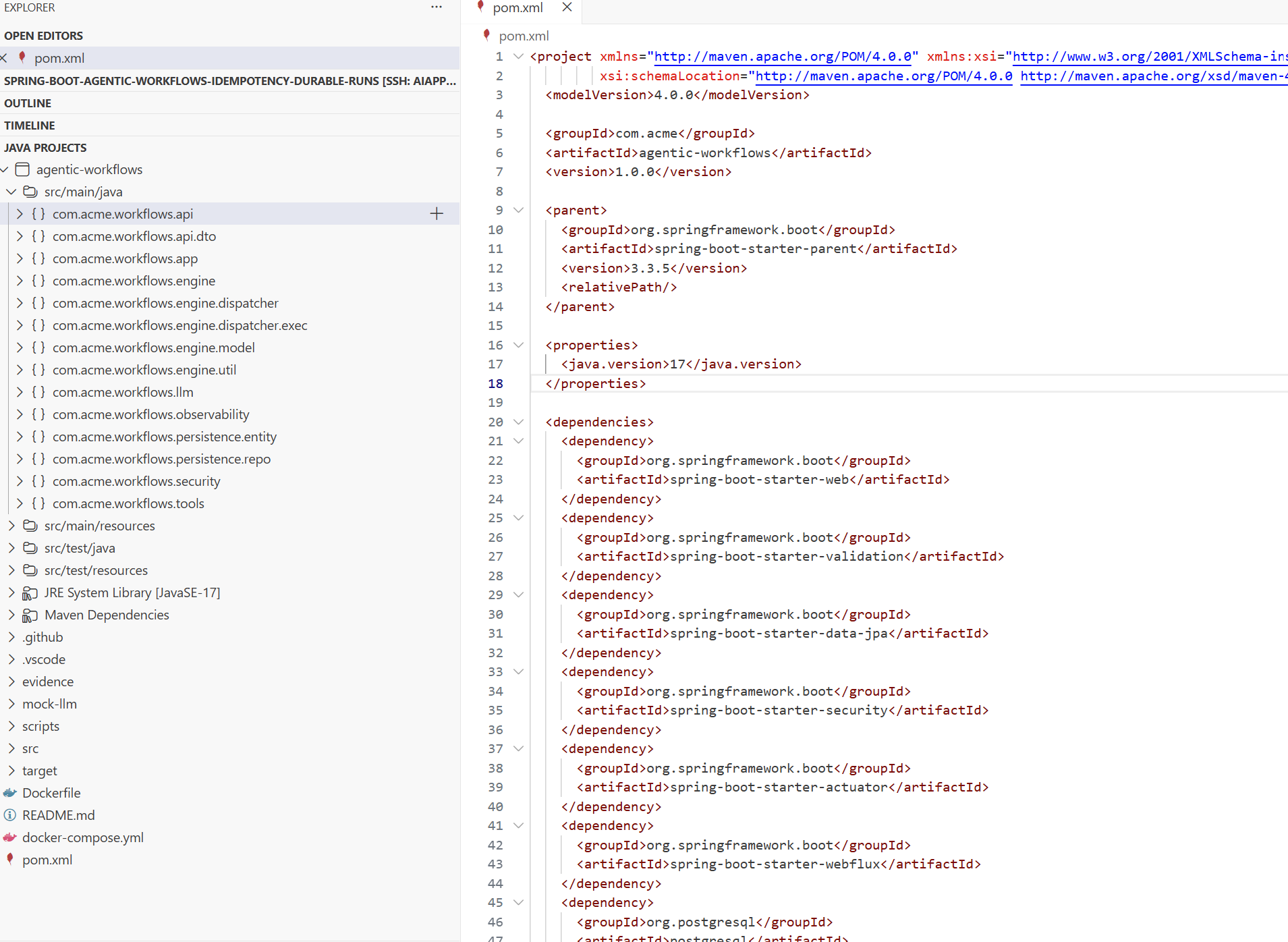

Technology stack

• Spring Boot 3.x / Java 17: stable operational model, mature observability and security integrations, straightforward packaging for Docker Compose.
• PostgreSQL: required for durable run state, idempotency ledger, leases, and replayable history; transactional consistency is central to correctness.
• Spring Scheduling: lightweight dispatcher mechanism for a single-node Compose deployment; avoids introducing a message broker while still enabling asynchronous progress.
• OpenTelemetry: vendor-neutral tracing, consistent correlation across HTTP, DB, LLM, and tool calls.

Data storage model

• The system uses a run/step/event model:

  • A run is the durable container (workflow instance).
  • A step is the unit of work (LLM plan, tool execution, approval wait, completion).
  • An event log (optional but included) captures append-only transitions for audit and replay.

• This model supports:

  • Restart-safe continuation.
  • Precise retry semantics at the step boundary.
  • Deterministic replay and debugging using persisted tool inputs/outputs.

Synchrony vs asynchrony

• Run creation is synchronous (returns run id immediately).

• Execution is asynchronous via the scheduler-driven dispatcher:

  • Prevents client timeouts from forcing duplicate work.
  • Allows durable waiting (approvals, backoffs) without tying up threads.

• Certain endpoints optionally support “wait-for” semantics (polling) but do not drive execution in-process on the request thread by default.

Error handling and retries

• Tool failures are categorized:

  • Transient (timeouts, 5xx): retry with bounded exponential backoff and jitter.
  • Permanent (4xx, validation, policy): mark step failed without retry.

• Retries are step-local, with columns tracking attempt count, last error, and next eligible execution time.

• The dispatcher uses leases to avoid double execution if multiple instances are ever introduced.

Idempotency strategy

• Idempotency is enforced at two levels:

  1. Run creation idempotency (client-supplied idempotency key): prevents duplicate runs on client retry.
  2. Tool execution idempotency (derived key): prevents duplicate side effects for the same run/step/tool input.

• The idempotency ledger stores:

  • Key, scope (tenant), tool name, request hash, status, response snapshot, timestamps.

• Tool calls must check and persist idempotency results in the same transaction that advances step state (or with a strict ordering guaranteeing at-most-once semantics per key).

4. Data Model

Core tables and purpose:

• workflow_run

  • Purpose: top-level workflow instance and lifecycle.
  • Key columns: id (uuid), tenant_id, status, created_at, updated_at, input_json, max_steps, deadline_at, idempotency_key.

• workflow_step

  • Purpose: durable unit of execution inside a run.
  • Key columns: id, run_id, seq, type (PLAN|TOOL|APPROVAL|FINAL), status, attempt, next_attempt_at, lease_owner, lease_expires_at, request_json, result_json, error_code, error_detail, started_at, finished_at.

• tool_execution

  • Purpose: canonical record of tool calls (inputs/outputs) for replay and audit.
  • Key columns: id, run_id, step_id, tool_name, idempotency_key, request_hash, request_json, response_json, status, duration_ms, created_at.

• idempotency_record

  • Purpose: global ledger to dedupe side effects (run creation and tool calls).
  • Key columns: idempotency_key (pk), tenant_id, scope (RUN_CREATE|TOOL_CALL), status, request_hash, response_json, created_at, updated_at.

• approval_checkpoint

  • Purpose: human-in-the-loop durable wait state.
  • Key columns: id, run_id, step_id, status (PENDING|APPROVED|REJECTED), requested_by, decided_by, reason, created_at, decided_at.

• run_event (append-only)

  • Purpose: replayable history and audit trail of transitions.
  • Key columns: id, run_id, step_id, event_type, payload_json, created_at.

Indexing strategy:

• workflow_run(tenant_id, created_at desc) for listing runs per tenant.

• workflow_run(idempotency_key, tenant_id) unique constraint to dedupe run creation.

• workflow_step(run_id, seq) unique to preserve deterministic ordering.

• Dispatcher hot path indexes:

  • workflow_step(status, next_attempt_at) partial index for status in (QUEUED, RETRY_PENDING) ordered by time.
  • workflow_step(lease_expires_at) to reclaim stuck leases.

• Idempotency:

  • idempotency_record(tenant_id, scope, idempotency_key) unique / primary key (depending on chosen schema).
  • tool_execution(idempotency_key) unique for tool-level at-most-once.

5. API Surface

• POST /api/runs – Create a new workflow run; returns run id (ROLE_USER)

  • Supports Idempotency-Key header for run creation dedupe.

• GET /api/runs/{id} – Get current run state summary (ROLE_USER, tenant-scoped)

• GET /api/runs/{id}/history – Get step-by-step history including tool inputs/outputs (ROLE_USER, tenant-scoped; redaction applied)

• POST /api/runs/{id}/approve – Approve a pending checkpoint and resume execution (ROLE_APPROVER)

• POST /api/runs/{id}/reject – Reject a pending checkpoint and fail/abort run (ROLE_APPROVER)

• POST /internal/dispatcher/tick – Trigger a dispatcher tick (ROLE_ADMIN; used for deterministic testing)

• GET /actuator/health – Health check (public or ROLE_ADMIN depending on deployment)

• GET /admin/runs – List runs across tenants (ROLE_ADMIN)

• GET /admin/runs/{id} – Admin view including raw events and lease state (ROLE_ADMIN)

6. Security Model

Authentication

• Spring Security with stateless authentication (e.g., JWT bearer tokens) for API endpoints.
• For local Compose, a dev profile can enable a fixed test token issuer or basic auth for simplicity while keeping the security model intact.

Authorization (roles)

• ROLE_USER: create runs, view own tenant runs, read history (with redaction).
• ROLE_APPROVER: approve/reject checkpoints for the tenant.
• ROLE_ADMIN: cross-tenant admin endpoints, dispatcher tick, operational views.

Paid access enforcement (if applicable)

• Enforced at the API layer via:

  • Tenant subscription status stored in DB or resolved via a billing adapter.
  • A request filter that blocks run creation and tool execution when subscription is inactive.

• The enforcement point must be before run creation and before tool execution (to prevent side effects).

CSRF considerations

• APIs are stateless and designed for token-based auth; CSRF is disabled for non-browser clients.
• If browser-based sessions are enabled, restrict cookie-based auth to admin UI endpoints and enable CSRF there only.

Data isolation guarantees

• Every run is tagged with tenant_id.
• All queries include tenant predicates except ROLE_ADMIN endpoints.
• History endpoints apply output redaction policies for tool inputs/outputs (secrets, tokens, PII markers) before returning to ROLE_USER.

7. Operational Behavior

Startup behavior

• On startup, the service:

  • Runs DB migrations (Flyway/Liquibase).
  • Initializes tool registry and validates allowed tool schemas.
  • Starts the dispatcher scheduler (unless disabled via profile).
  • Emits a startup log line including version, active profiles, DB connectivity, and OTel exporter mode.

Failure modes

• DB unavailable: fail fast on startup; health becomes unhealthy; no runs executed.
• LLM provider unavailable: PLAN steps fail transiently and retry until max attempts; run transitions to FAILED when exhausted.
• Tool failure: step transitions to RETRY_PENDING (transient) or FAILED (permanent).
• Process restart during execution: leases expire; dispatcher reclaims and resumes from the last durable state.

Retry and timeout behavior

• Planner (LLM) timeout is bounded; failures are retried with backoff up to planner.maxAttempts.
• Tool calls have per-tool timeouts and max attempts.
• Backoff is stored in next_attempt_at to ensure restart-safe scheduling.
• A run-level deadline_at prevents indefinite execution; once exceeded, remaining steps fail with TIMEOUT.

Observability hooks

• Structured logs:

  • run_id, step_id, tenant_id, tool_name, attempt, lease_owner, idempotency_key.

• OpenTelemetry traces:

  • HTTP span for inbound requests.
  • Run execution span (per step) linked via trace/span attributes.
  • Nested spans for LLM calls and tool calls with result status and latency.

• Metrics (via Micrometer + OTel bridge if desired):

  • Runs created/completed/failed.
  • Step retries, tool error rates, dispatcher lag.
  • Idempotency hits vs misses.

8. Local Execution

Prerequisites

• Docker Desktop (or Docker Engine) with Compose v2
• JDK 17 (for running tests locally; container build uses JDK image)
• Available ports: 8080 (app), 5432 (postgres), 4317 (optional OTLP)

Environment variables

• SPRING_PROFILES_ACTIVE=local
• DB_URL=jdbc:postgresql://localhost:5432/workflows
• DB_USER=workflows
• DB_PASS=workflows
• LLM_BASE_URL=http://mock-llm:8081 (or your provider)
• LLM_API_KEY=... (if using real provider)
• OTEL_EXPORTER_OTLP_ENDPOINT=http://otel-collector:4317 (optional)
• WORKFLOWS_MAX_STEPS=25
• WORKFLOWS_DEFAULT_DEADLINE_SECONDS=120

Docker Compose usage

docker compose up -d --build

Verification steps

1. Health:

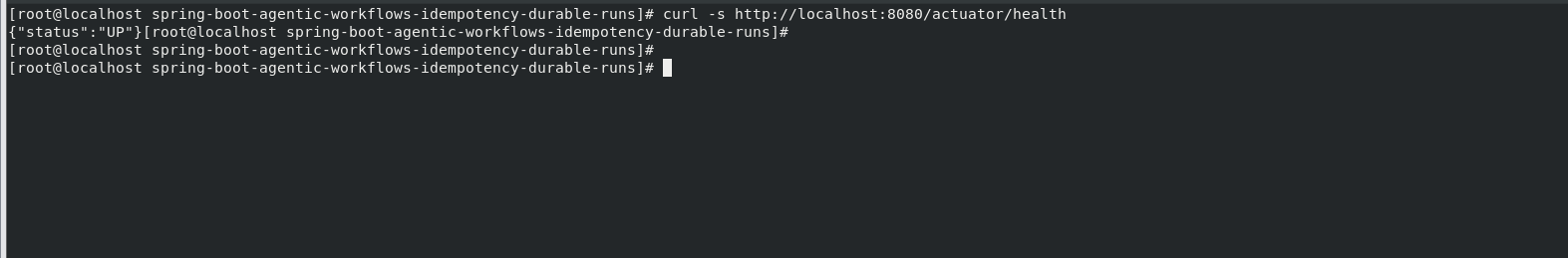

curl -s http://localhost:8080/actuator/health

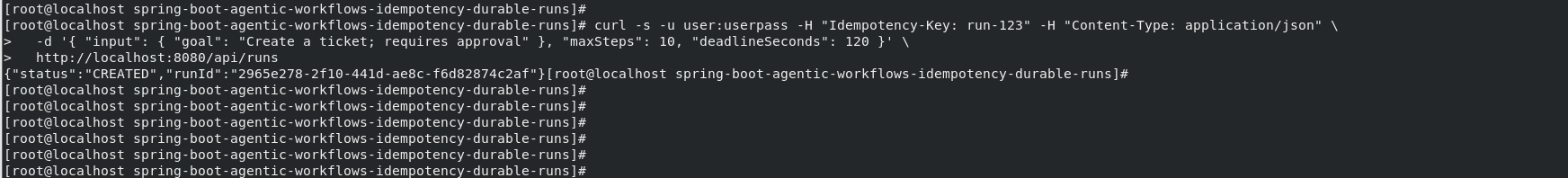

2. Create a run (with idempotency):

curl -s -X POST http://localhost:8080/api/runs \
  -H "Authorization: Bearer <TOKEN>" \
  -H "Idempotency-Key: run-123" \
  -H "Content-Type: application/json" \
  -d '{
    "tenantId": "t-001",
    "input": { "goal": "Create a ticket via tool, requires approval" }
  }'

3. Poll status:

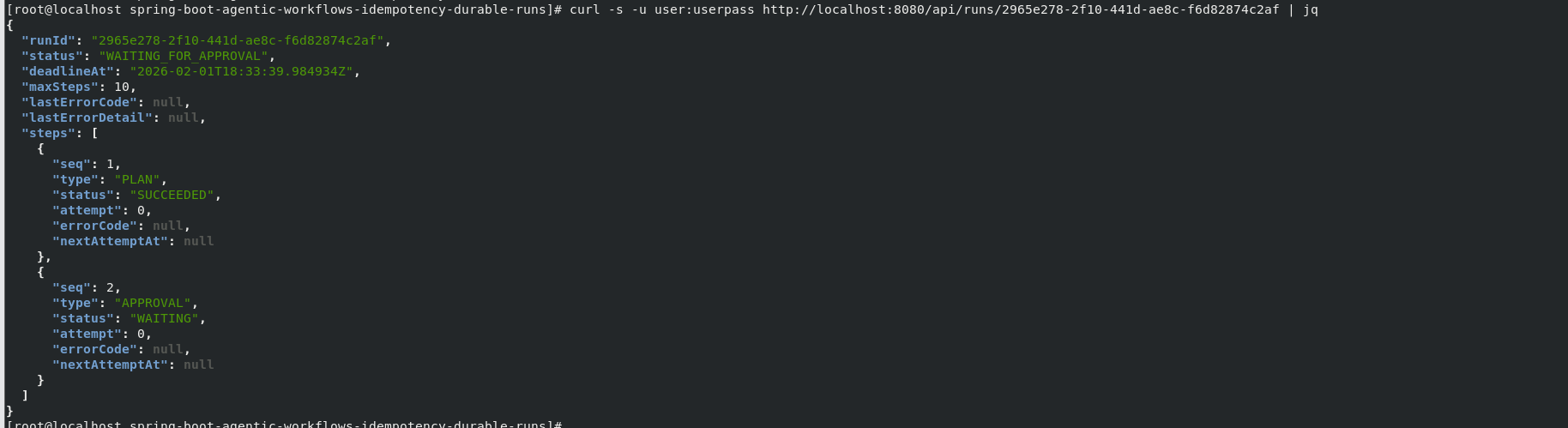

curl -s http://localhost:8080/api/runs/<RUN_ID> \
  -H "Authorization: Bearer <TOKEN>"

4. If run is waiting for approval:

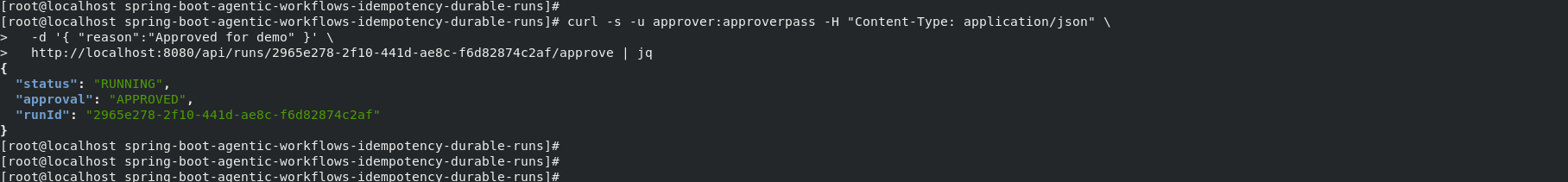

curl -s -X POST http://localhost:8080/api/runs/<RUN_ID>/approve \
  -H "Authorization: Bearer <APPROVER_TOKEN>" \
  -H "Content-Type: application/json" \
  -d '{ "reason": "Approved for demo" }'

5. Confirm history is replayable:

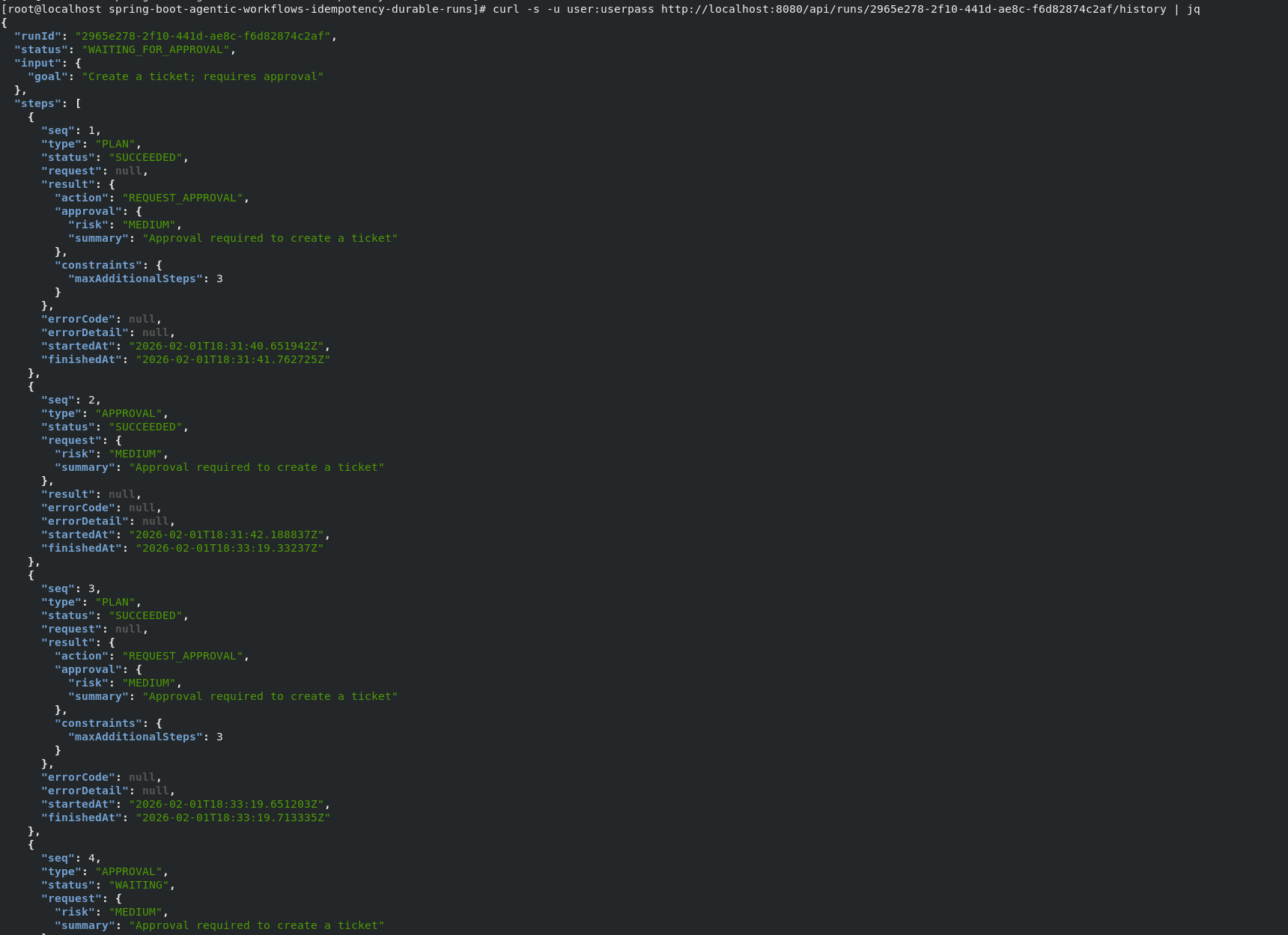

curl -s http://localhost:8080/api/runs/<RUN_ID>/history \
  -H "Authorization: Bearer <TOKEN>"

6. Idempotency validation (repeat create with same key; should return same run id or a conflict-safe response):

curl -i -X POST http://localhost:8080/api/runs \
  -H "Authorization: Bearer <TOKEN>" \
  -H "Idempotency-Key: run-123" \
  -H "Content-Type: application/json" \
  -d '{ "tenantId": "t-001", "input": { "goal": "Create a ticket via tool, requires approval" } }'

9. Evidence Pack

Checklist of included evidence artifacts proving execution and correctness:

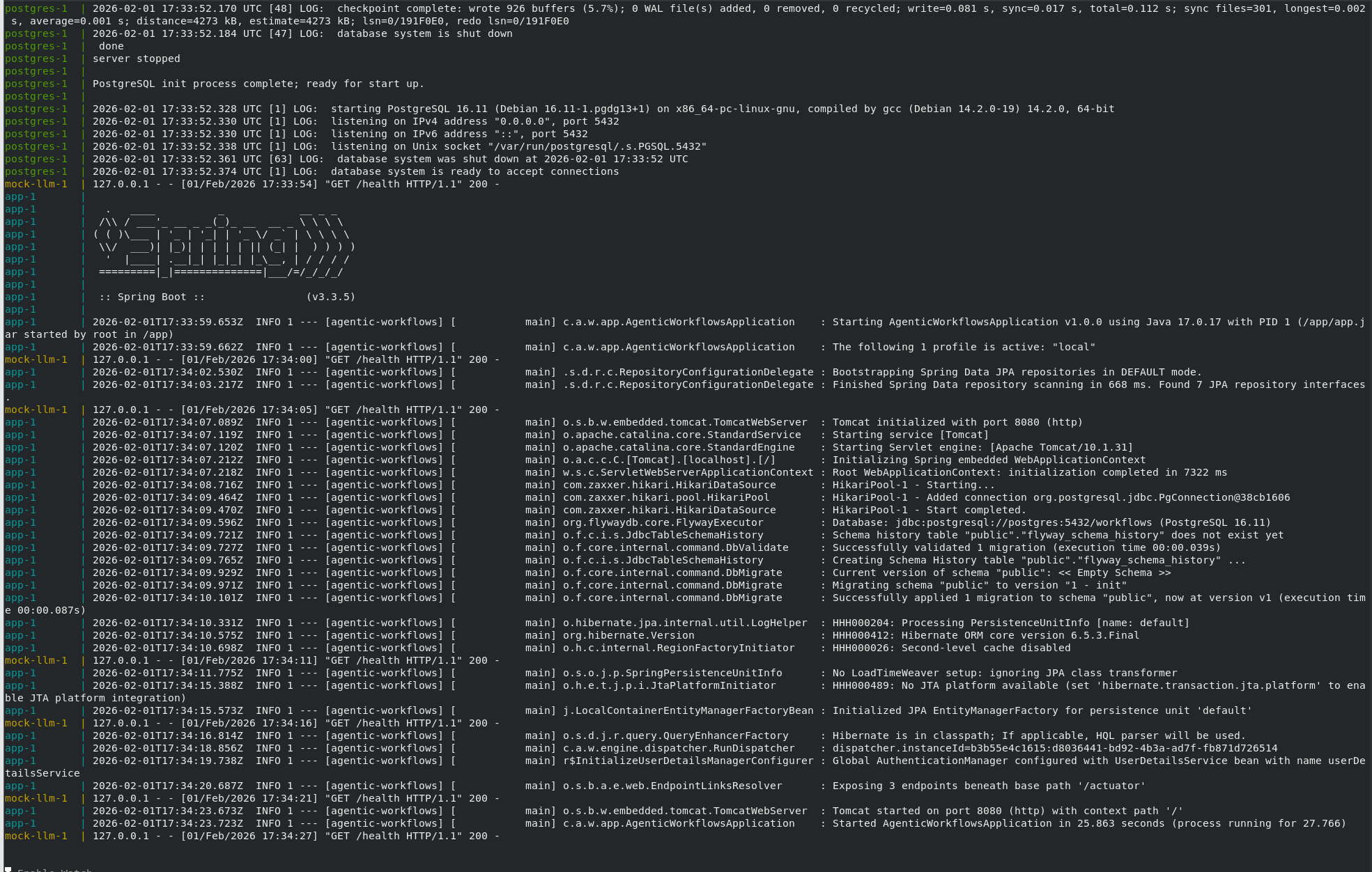

• Service startup logs showing DB migration completion and dispatcher start

• Successful POST /api/runs invocation logs including returned run id and Idempotency-Key handling

• Database records after run creation:

  • workflow_run row
  • initial workflow_step rows

• Replayable run history output from GET /api/runs/{id}/history demonstrating persisted step transitions

• Idempotency proof:

  • repeated POST /api/runs with same idempotency key returning same run reference
  • idempotency_record row showing stored response snapshot

• Retry behavior demonstration:

  • forced transient tool failure logs showing attempts incrementing and next_attempt_at scheduling
  • run eventually completes after retry or fails after max attempts

• Human-in-the-loop checkpoint proof:

  • run enters WAITING_FOR_APPROVAL
  • approval action transitions run back to runnable state and continues execution
  • approval_checkpoint row showing approver and timestamp

• OpenTelemetry trace export proof:

  • trace showing correlated spans: inbound request → run execution → planner call → tool call → retry span (if triggered)

• Test evidence:

  • idempotency unit/integration test output
  • deterministic replay test verifying identical step history from persisted events

10. Known Limitations

• Single-node dispatcher design by default; horizontal scaling requires distributed locking/leases across multiple instances and careful tuning of lease durations and concurrency.
• Tool result redaction is policy-based and requires explicit configuration per tool schema; it does not automatically detect all sensitive data.
• This solution does not provide a full UI for approvals; it exposes API endpoints and an optional minimal admin view only.
• Exactly-once semantics are scoped to idempotency keys; if external tools are non-idempotent and keys are not enforced at the boundary, side effects can still duplicate.
• No built-in long-term artifact storage for large tool outputs; payloads are stored as JSON and should be capped or externalized for large binaries.

11. Extension Points

• Replace the scheduler-based dispatcher with:

  • a queue-driven model (Kafka/RabbitMQ) for higher throughput, while preserving the same run/step persistence and idempotency ledger.

• Add a “tool gateway” service:

  • isolate high-risk tools behind an internal API with separate authorization and auditing.

• Introduce multi-tenant scaling:

  • per-tenant concurrency limits, per-tenant rate limiting for LLM calls, and quota enforcement integrated with subscription status.

• Add stronger determinism and replay:

  • treat planner outputs as immutable events and support “replay with fixed plan” without re-calling the LLM.

• Production hardening changes:

  • run/step partitioning and retention policies
  • outbox forwarding to an external audit system
  • dedicated tracing backend and sampling strategy
  • secret management (Vault/KMS) and per-tool credential isolation
